REAR DIFFERENTIAL REMOVAL/INSTALLATION


id031400800400

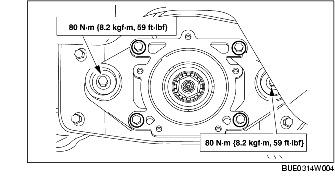

1. Remove the rotary blade coupling. (See RBC UNIT REMOVAL/INSTALLATION.)

2. Remove the rear drive shaft. (See REAR DRIVE SHAFT REMOVAL/INSTALLATION.)

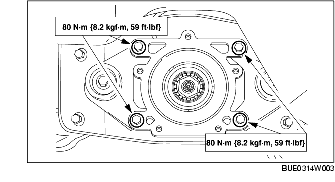

3. Remove the axle component-to-side bracket bolts.

4. Remove the front differential mount.

5. Remove the rear axle-to-side bracket bolts and the axle component.

6. Install in the reverse order of removal.
