4WD LOCK SWITCH REMOVAL/INSTALLATION [R.H.D.]

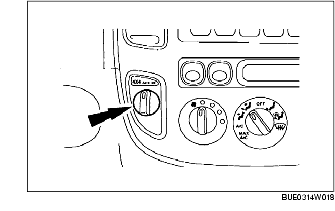

1. Remove the 4WD lock switch knob.

2. Remove the meter hood. (See METER HOOD REMOVAL/INSTALLATION.)

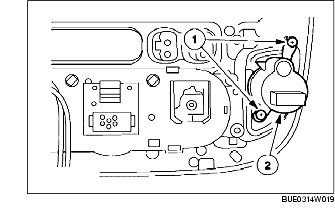

3. Remove the 4WD lock switch.

• Remove the screws.

• Remove the 4WD lock switch.
