DISC PAD (FRONT) REPLACEMENT

1. Remove the wheels and tires. (See WHEEL AND TIRE REMOVAL/INSTALLATION.)

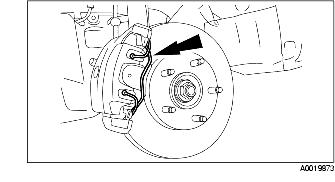

2. Remove the retaining clip.

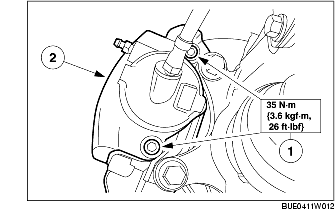

3. Position the caliper out of the way.

(1) Remove the caps and the bolts.

(2) Position the caliper out of the way and support.

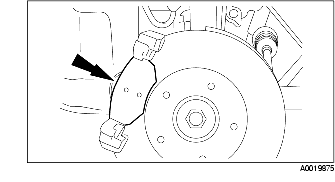

4. Remove the brake pad.

(1) Remove the brake pad (outer side) from the mounting support.

(2) Remove the brake pad (inner side) from the caliper piston.

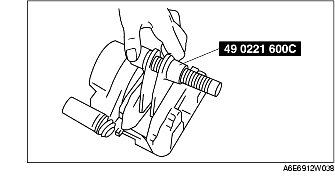

5. After cleaning the exposed part of the piston, push the piston in using the SST.

6. Install in the reverse order of removal.
