BRAKE PEDAL REMOVAL/INSTALLATION

1. Remove the brake switch. (See BRAKE SWITCH REMOVAL/INSTALLATION.)

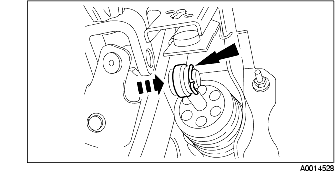

2. Disconnect the push rod from the brake pedal.

(1) Remove the snap pin and washer.

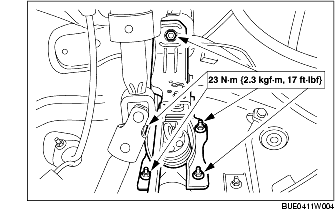

3. Remove the brake pedal.

Note

• The brake pedal temporary installation hook may deform when the brake pedal is removed.

(1) Remove the nuts.

4. Install in the reverse order of removal.
