MOUNTING SUPPORT REMOVAL/INSTALLATION

id041100802500

1. Remove the wheels and tires. (See WHEEL AND TIRE REMOVAL/INSTALLATION.)

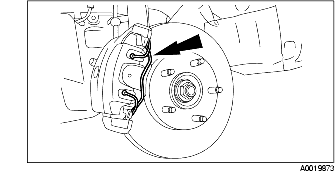

2. Remove the retaining clip.

3. Position the caliper out of the way.

(1) Remove the caps and the bolts.

(2) Position the caliper out of the way and support.

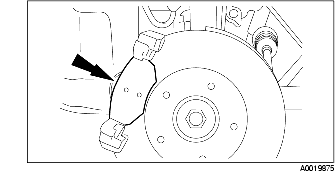

4. Remove the disc pad (outer side).

5. Remove the bolts and the mounting support.

6. Install in the reverse order of removal.
