REAR PARKING BRAKE CABLE REMOVAL/INSTALLATION

id041200801300

1. Remove the brake shoes. (See BRAKE SHOE REMOVAL/INSTALLATION.)

2. Disconnect the rear parking brake cable bracket from the wheel knuckle.

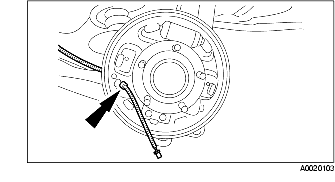

3. Disconnect the rear parking brake cable from the backing plate.

4. Remove the rear parking brake cable bracket bolts.

5. Remove the RH side rear parking brake cable.

(1) Disconnect the RH side rear parking brake cable from the front parking brake cable.

(2) Disconnect the RH side rear parking brake cable from the parking brake bracket.

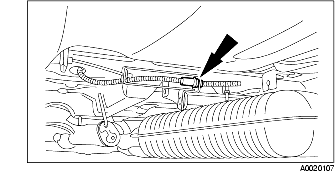

6. Disconnect the rear parking brake cable from fuel tank support strap.

7. Disconnect the front parking brake cable.

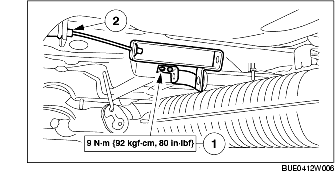

8. Remove the LH side rear parking brake cable.

(1) Remove the two bolts.

(2) Disconnect the LH side rear parking brake cable from the parking brake bracket.

9. Install in the reverse order of removal.
