CLUTCH RELEASE FORK REMOVAL/INSTALLATION [G15M-R, G25MX-R]


id0510008665a0

1. Remove the transaxle.

(See MANUAL TRANSAXLE REMOVAL/INSTALLATION [G15M-R, G25MX-R].)

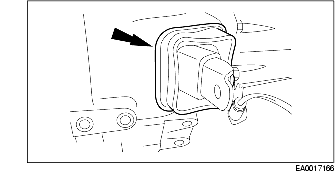

2. Remove the rubber boot.

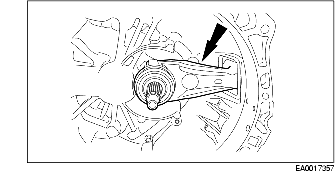

3. Remove the clutch release fork and clutch release collar.

4. Install in the reverse order of removal.
