CLUTCH COVER LOCATING DOWELS REMOVAL/INSTALLATION

id051000867000

1. Remove the transaxle.

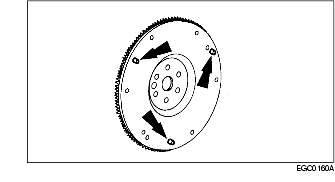

2. Remove the flywheel locating dowels.

Note

• Care should be taken not to damage the dowel holes or the surrounding surface areas during removal.

3. Install the flywheel locating dowels.

Note

• Care should be taken to install the dowel squarely into place until it is fully seated and to not damage the surrounding surface areas.

4. Install the transaxle.
