NO.4 ENGINE MOUNT REMOVAL/INSTALLATION [G15M-R, G25MX-R]

id0515a6867200

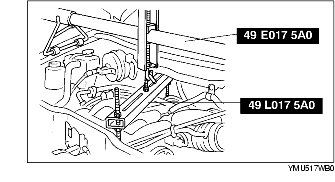

1. Using the SSTs, support the engine.

2. Remove the air cleaner. (See AIR CLEANER REMOVAL/INSTALLATION [YF (2.0L Zetec)].)

3. Remove the No.4 engine mount rubber.

(1) Remove the bolt.
(2) Remove the four bolts.
(3) Remove the No.4 engine mount rubber.

4. Install in the reverse order of removal.
