SOLENOID VALVE REMOVAL/INSTALLATION [GF4AX-EL]

1. Remove the control valve body. (See CONTROL VALVE BODY REMOVAL/INSTALLATION [GF4AX-EL].)

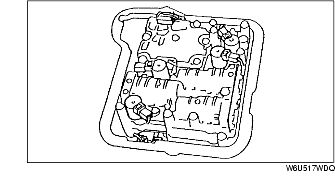

2. Remove the solenoid valve(s).

3. Apply ATF to a new O-ring and install it on the solenoid valve.

4. Install the solenoid valve in the control valve body.

Tightening torque

6.5-7.8 N·m {66-80 kgf·cm, 58-69 in·lbf}

5. Install the control valve body. (See CONTROL VALVE BODY REMOVAL/INSTALLATION [GF4AX-EL].)

6. Add the ATF while the engine is idling, and inspect the ATF level and leakage. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT [GF4AX-EL].)(See Automatic Transaxle Fluid (ATF) Level Inspection.)

7. Perform the time lag test and line pressure test. (See MECHANICAL SYSTEM TEST [GF4AX-EL].)
