TRANSFER CASE REAR OUTPUT SHAFT OIL SEAL INSTALLATION [LA4AX-EL (CD4E)]

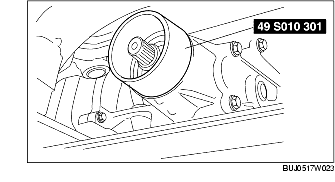

1. Using the SST, install the transfer case rear output shaft (pinion) seal.

2. Install the companion flange. (See TRANSFER CASE REAR OUTPUT SHAFT FLANGE INSTALLATION [LA4AX-EL (CD4E)].)

3. Add transfer oil into the transfer case. (See TRANSFER OIL REPLACEMENT [LA4AX-EL (CD4E)].)
