TRANSFER CASE REAR OUTPUT SHAFT FLANGE INSTALLATION [LA4AX-EL (CD4E)]

1. Install the companion flange to engage the spline as previously marked.

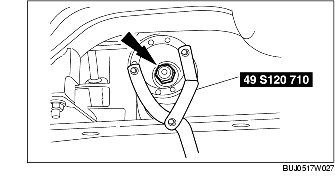

2. Using the SST, install the companion flange.

3. Install the pinion nut.

Caution

• Do not over tighten the pinion nut.

• Refer to the rotational torque previously recorded.

4. Install the propeller shaft. (See PROPELLER SHAFT REMOVAL/INSTALLATION.)
