TRANSFER CASE INNER DRIVE SHAFT SEAL INSTALLATION [LA4AX-EL (CD4E)]

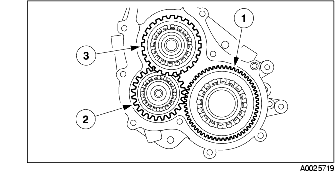

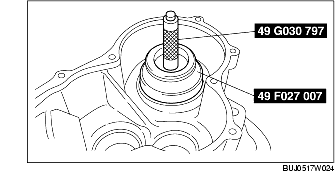

1. Using the SSTs, install the inner drive shaft seal.

2. Install the three gears.

(1) Install the drive gear.

(2) Install the idler gear.

(3) Install the driven gear.

3. Install the transfer case cover.

Caution

• The transfer case cover must be installed within 15 min of applying the silicone sealant. If the time limit is exceeded, clean the sealing surfaces and reapply.

Note

• Apply a 3 mm {1/8 in} bead of silicone gasket and sealant to the sealing surface of the transfer case cover before installing on the transfer case.

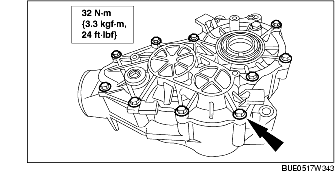

4. Tighten the bolts in a crisscross pattern.

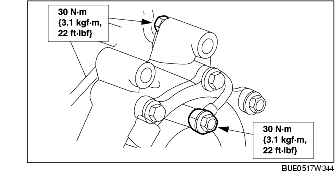

5. Install the transfer case vent tube.

6. Install the bolts.

7. Install the transfer case. (See TRANSFER CASE INSTALLATION [LA4AX-EL (CD4E)].)

8. Add transfer oil into the transfer case. (See TRANSFER OIL REPLACEMENT [LA4AX-EL (CD4E)].)

9. Inspect the ATF level. (See AUTOMATIC TRANSAXLE FLUID (ATF) INSPECTION [LA4AX-EL (CD4E)].)
