OUTPUT SHAFT SPEED (OSS) SENSOR INSTALLATION [LA4AX-EL (CD4E)]

id0517a5803500

Note

• Apply a light coat of petroleum jelly to the O-ring before installation.

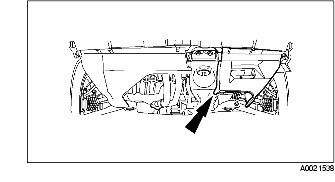

1. Install the OSS sensor.

2. Connect the OSS sensor connector.

3. Install the splash shield.

4. Install the front wheel (LH). (See WHEEL AND TIRE REMOVAL/INSTALLATION.)

5. Lower the vehicle.

6. Connect the negative battery cable.

7. Inspect the ATF level and add Mercon^®ATF if necessary.

8. Start the engine and shift the selector lever and pause momentarily in each shift position while depressing the brake pedal. Add ATF if necessary.
