TURBINE SHAFT SPEED (TSS) SENSOR INSTALLATION [LA4AX-EL (CD4E)]

Note

• Apply a light coat of petroleum jelly to the O-ring before installation.

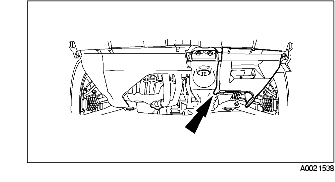

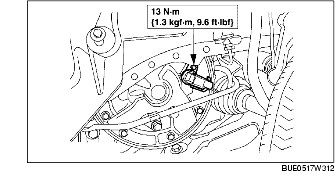

1. Install the TSS sensor.

2. Connect the TSS sensor connector.

3. Remove the drain pan.

4. Install the splash shield.

5. Install the front wheel (LH). (See WHEEL AND TIRE REMOVAL/INSTALLATION.)

6. Lower the vehicle.

7. Connect the negative battery cable.

8. Inspect the ATF level and add Mercon^® ATF if necessary.

9. Start the engine and shift the selector lever and pause momentarily in each shift position while depressing the brake pedal. Add ATF if necessary.
