DRIVE PLATE INSTALLATION [LA4AX-EL (CD4E)]

id0517a5805400

1. Install the drive plate.

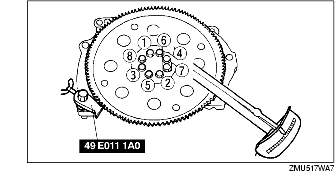

2. Set the SST or equivalent against the drive plate.

3. Tighten the bolts in two or three steps in the order as shown in the figure.

Tightening torque

73-87 N·m {7.5-8.8 kgf·m, 54-64 ft·lbf}
