DEFROSTER DUCT REMOVAL/INSTALLATION


id071100000200

1. Remove the dashboard. (See DASHBOARD REMOVAL/INSTALLATION.)

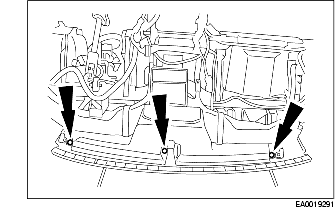

2. Remove the screws and the retaining guides.

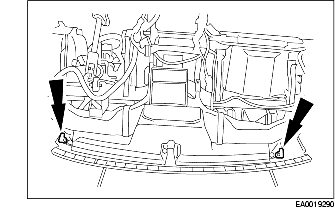

3. Remove the screws and remove the duct.

4. Install in the reverse order of removal.
