CONDENSER REMOVAL/INSTALLATION

Note

• Installation of a new accumulator tank is not necessary when repairing the air conditioning system except when there is physical evidence of system contamination from a failed A/C component or damage to the accumulator tank.

• If an condenser leak is suspected, the condenser must be leak tested before it is removed from the vehicle. (See EVAPORATOR/CONDENSER INSPECTION.)

1. Discharge the refrigerant from the system. (See DISCHARGING AND RECOVERY.)

2. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION.)

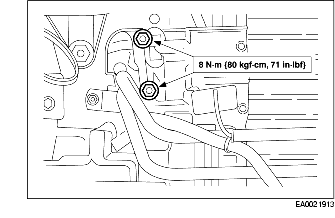

3. Remove the nuts from the two condenser fitting.

Caution

• Plug all ports to prevent contamination from dirt or moisture.

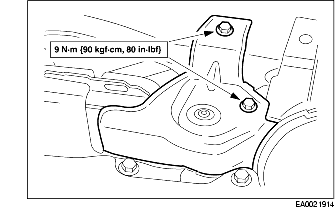

4. Remove the screws and the condenser bracket.

5. Remove the condenser.

Note

• When removing the condenser, disconnect the two air conditioner line (block-type) fittings from condenser.

6. Install in the reverse order of removal.

(1) Lubricate the new A/C compressor with the correct amount of PAG Compressor Oil. (See COMPRESSOR OIL ADDING.)

(2) Lubricate the new O-ring with PAG Compressor Oil.
