CLIMATE CONTROL UNIT DISASSEMBLY/ASSEMBLY [L.H.D.]

id0740008020a6

1. Disassemble in the order indicated in the table.


1	Dial
2	Socket
3	bulb (See Socket/bulb Removal Note)
4	Temperature control lever (See Temperature Control Lever Removal Note)
5	Fan control switch (See Fan Control Switch Removal Note)
6	Mode switch (See Mode Switch Removal Note)
7	Climate control unit

2. Assemble in the reverse order of removal.

Socket/bulb Removal Note

1. Remove the socket and bulb by turning a quarter turn counterclockwise and lifting straight up.

1. Remove the temperature control switch.

(1) Remove the screw.

(2) Depress the tab and rotate the temperature control lever counterclockwise.

1. Remove the screw.

2. Remove the fan control switch by turning a quarter turn counterclockwise and lifting straight up.

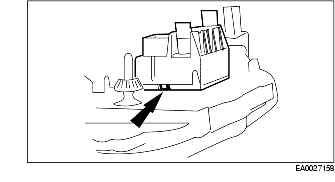

1. Remove the mode switch.

(1) Push in the locking tab on one side of the mode switch.
