TEMPERATURE BLEND DOOR CONTROL CABLE REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

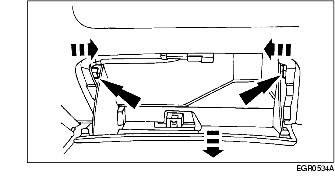

2. Remove the glove compartment.

3. Disconnect the temperature blend door control cable.

(1) Align the locator holes and insert the tape-wrapped screwdriver.

(2) Release the locking tab.

(3) Remove the temperature blend door control cable from the blend door shaft.

4. Remove the meter hood. (See METER HOOD REMOVAL/INSTALLATION.)

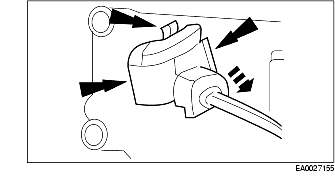

5. Depress the three tabs and remove the temperature control cable.

6. Install in the reverse order of removal.

Note

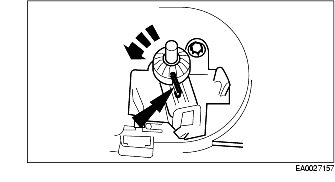

• Rotate the gear to align the locking tab with the notch in the gear before installing.
