STEP
|
INSPECTION
|
ACTION
|
|
|---|---|---|---|
|
1
|
INSPECT DOOR LOCK ACTUATOR CIRCUIT (LOCK OPERATION POWER SUPPLY CIRCUIT) FOR SHORT TO B+
Disconnect the GEM connector (26-pin) and all the door latch and lock actuator connectors.

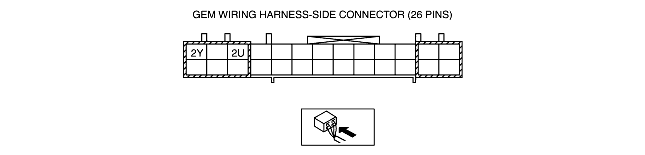

Measure the voltage between GEM connector terminal 2Y (harness-side) and ground.
Is there voltage?
|
Yes
|
Repair the suspected circuit.
Inspect the system for normal operation.
|
|
No
|
Go to the next step.
|
||
|
2
|
INSPECT DOOR LOCK ACTUATOR CIRCUIT (LOCK OPERATION POWER SUPPLY CIRCUIT) FOR SHORT TO GROUND
Measure the resistance between GEM connector terminal 2Y (harness-side) and ground.
Is the resistance 10,000 ohms or more?
|
Yes
|
Go to the next step.
|
|
No
|
Repair the circuit.
Inspect the system for normal operation.
|
||
|
3
|
INSPECT DOOR LOCK ACTUATOR CIRCUIT (UNLOCK OPERATION POWER SUPPLY CIRCUIT) FOR SHORT TO B+
Measure the voltage between GEM connector terminal 2U (harness-side) and ground.
Is there voltage?
|
Yes
|
Repair the suspected circuit.
Inspect the system for normal operation.
|
|
No
|
Go to the next step.
|
||
|
4
|
INSPECT DOOR LOCK ACTUATOR CIRCUIT (UNLOCK OPERATION POWER SUPPLY CIRCUIT) FOR SHORT TO B+
Measure the resistance between GEM connector terminal 2U (harness-side) and ground.
Is the resistance 10,000 ohms or more?
|
Yes
|
Go to the next step.
|
|
No
|
Repair the circuit.
Inspect the system for normal operation.
|
||
|
5
|
INSPECT GEM FOR NORMAL OPERATION
Disconnect the GEM connector.
Inspect for the following items:
• Corrosion
• Terminal separation
Connect all the connectors and verify that their positions are correct.
Operate the system and inspect for any malfunction.
Is there any malfunction?
|
Yes
|
Install a new GEM. (See GENERIC ELECTRONIC MODULE (GEM) REMOVAL/INSTALLATION.)
Clear the DTC and perform the DTC inspection.
|
|
No
|
Verify that the system operates normally at this stage.
The malfunction may result from loose connectors or corrosion.
Clear the DTC and perform the DTC inspection.
|
||
|
|
|||
