STEP
|
INSPECTION
|
ACTION
|
|
|---|---|---|---|
|
1
|
DTC INSPECTION
Make sure the bonnet is closed.
Is the DTC displayed?
• B1519
|
Yes
|
Go to the next step.
|
|
No
|
Go to Step 4.
|
||
|
2
|
INSPECT BONNET SWITCH CIRCUIT FOR SHORT TO B+
Disconnect the GEM connector.
Turn the ignition switch to the ON position.

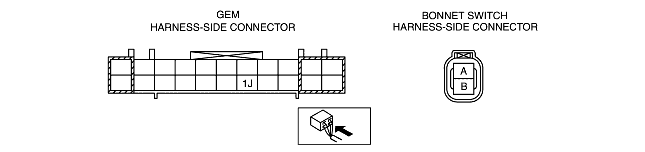

Measure the voltage between GEM connector terminal 1J (harness-side) and ground.
Is there voltage?
|
Yes
|
Repair the circuit.
Inspect the system for normal operation.
|
|
No
|
Go to the next step.
|
||
|
3
|
INSPECT DRIVER-SIDE DOOR KEY CYLINDER CIRCUIT FOR SHORT TO GROUND
Measure the resistance between GEM connector terminal 1J (harness-side) and ground.
Is the resistance less than 5 ohms?
|
Yes
|
Go to Step 5.
|
|
No
|
Go to the next step.
|
||
|
4
|
INSPECT BONNET SWITCH INPUT TO THE GEM
Open the bonnet.
Depress the bonnet switch.
Measure the resistance between GEM connector terminal 1J (harness-side) and ground.
Is the resistance less than 5 ohms when the bonnet switch is depressed?
|
Yes
|
Repair the circuit.
Inspect the system for normal operation.
|
|
No
|
Go to the next step.
|
||
|
5
|
INSPECT BONNET SWITCH
Disconnect the bonnet switch connector.
Measure the resistance between bonnet switch connector terminal B (harness-side) and ground.
Is the resistance less than 5 ohms?
|
Yes
|
Install a new bonnet switch.
Inspect the system for normal operation.
|
|
No
|
Repair the circuit.
Inspect the system for normal operation.
|
||
|
6
|
INSPECT GEM FOR NORMAL OPERATION
Disconnect the all GEM connectors.
Inspect for the following items:
• Corrosion
• Terminal separation
Connect all the connectors and verify that their positions are correct.
Operate the system and inspect for any malfunction.
Is there any malfunction?
|
Yes
|
Install a new GEM. (See GENERIC ELECTRONIC MODULE (GEM) REMOVAL/INSTALLATION.)
Clear the DTC and perform the DTC inspection.
|
|
No
|
Verify that the system operates normally at this stage. The malfunction may result from loose connectors or corrosion.
Clear the DTC and perform the DTC inspection.
|
||
|
|
|||
