STEP
|
INSPECTION
|
ACTION
|
1
|
VERIFY DTC
• Are any DTCs, except the following, displayed?
-
- U0073
|
Yes
|
Determine the location of malfunction.
|
No
|
Go to the next step.
|
2
|
INSPECT CONNECTOR
• Inspect the CAN system module connector indicated by the DTC.
• Is it normal?
|
Yes
|
Go to the next step.
|
No
|
Replace the wiring harness, then go to Step 4.
|
3
|
INSPECT WIRING HARNESS

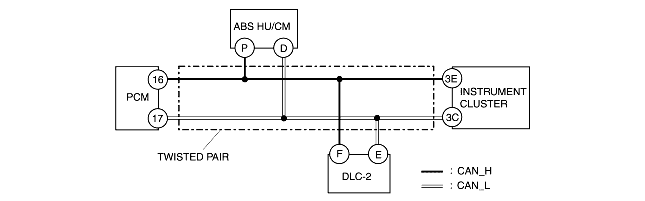

• Inspect the CAN system wiring harness for the following items.
-
- Short to ground
-
- Short to power supply
-
- Short in twisted pair cable
-
- Open circuit
• Is the wiring harness normal?
|
Yes
|
Go to the next step.
|
No
|
Replace the wiring harness, then go to the next step.
|
4
|
VERIFY THAT REPAIR OPERATION IS COMPLETED
• Connect the connectors of each module.
• Using the WDS or equivalent, clear DTCs from the PCM memory.
• Start the engine.
• Are any of the CAN DTCs displayed?
|
Yes
|
Replace the module that output the CAN system DTCs again.
|
No
|
Troubleshooting completed.
|
