FRONT SEAT BACK REMOVAL/INSTALLATION [DRIVER'S SEAT]

id0913008016a1

Removal

Warning

• Always wear safety glasses when repairing an air bag supplemental restraint system (SRS) vehicle and when handling an air bag module. This will reduce the risk of injury in the event of an accidental operation (deployment).

• Carry a live side air bag module with the air bag and tear seam pointed away from your body. This will reduce the risk of injury in the event of an accidental operation (deployment).

• Do not set a live side air bag module down on the cover tear seam. This will reduce the risk of injury in the event of an accidental operation (deployment).

• After operation (deployment), the air bag surface can contain deposits of sodium hydroxide, a product of the gas generating combustion that is irritating to the skin. Wash your hands with soap and water afterward.

• Never probe the connectors on the air bag module with a tester. Doing so can result in air bag operation (deployment), and personal injury.

• Vehicle air bag sensor orientation is critical for proper air bag system (SRS) operation (deployment). If a vehicle equipped with an air bag supplemental restraint system (SRS) is involved in a collision, inspect the sensor mounting bracket and wiring harness connectors for deformation. Replace and properly position the sensor or any other damaged supplemental restraint system (SRS) components whether or not the air bag has operated (deployed).

• To avoid accidental operation (deployment) and possible personal injury, the backup power supply must be depleted before repairing or replacing any front or side air bag system components and before servicing, replacing, adjusting or causing impact to components near the front or side air bag sensors, such as doors, instrument panel, console, door latches, strikers, seats and hood latches.

• Refer to this manual to determine location of the crash zone sensors before work.

• The side air bag sensors are located at or near the base of the B-pillar.

• To deplete the backup power supply, disconnect the battery negative cable and wait for one minute or more. Be sure to disconnect auxiliary batteries and power supplies (if equipped).

• The SST (diagnostic simulator) is for air bag system (SRS) servicing only. Before using the vehicle, it must be removed. Failure to remove it could result in personal injury and loss of vehicle safety standards.

Note

• If a seat equipped with a seat mounted side air bag system is being serviced, the air bag system (SRS) must be deactivated. (See AIR BAG SYSTEM DEACTIVATION PROCEDURES.)

• The SST (diagnostic simulator) must be installed under the seats to the floor connector that is connected to the side air bag and the pre-tensioner seat belt (if equipped).

• Diagnostics or servicing are not to be performed on a side air bag system or a pre-tensioner seat belt (if equipped) with the seat in the vehicle. Prior to attempting to diagnose/service the side air bag system or a pre-tensioner seat belt (if equipped), the seat must be removed from the vehicle and the SST (diagnostic simulator) must be installed to the side air bag and pre-tensioner seat belt floor connector. The SST (diagnostic simulator) must be removed prior to operating the vehicle.

• Diagnostics may be performed on seat systems other than the side air bag system or a pre-tensioner seat belt (lumbar, climate control, heat, power seat track)(if equipped) with the seat installed in the vehicle as long as the SST (diagnostic simulator) is installed under the seat to the side air bag and a pre-tensioner seat belt floor connector.

• After diagnosing/repairing a seat system the SST (diagnostic simulator) must be removed before operating the vehicle.

• If a side air bag operation (deployment) has taken place, a new seatback pad, seatback trim, and side air bag module must be installed. A new seatback frame should be installed if necessary.

All vehicles

1. Move the front seats forward.

2. Disconnect the negative battery cable and wait 1 min or more.

Vehicles with side air bag

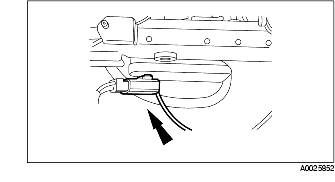

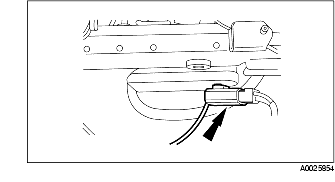

1. Disconnect the driver-side side air bag module connector.

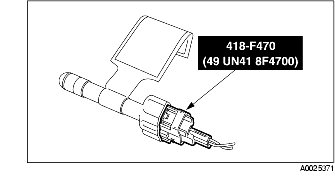

2. Connect the SST (diagnostic simulator) to the driver's seat side air bag module body wiring harness electrical connector.

All vehicles

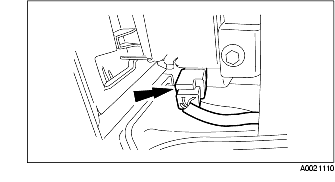

1. Disconnect the driver's seat pre-tensioner seat belt connector.

2. Connect the SST (diagnostic simulator) to the driver's seat pre-tensioner seat belt body wiring harness electrical connector.

3. Disconnect the passenger's seat pre-tensioner seat belt connector.

4. Connect the SST (diagnostic simulator) to the passenger's seat pre-tensioner seat belt body wiring harness electrical connector.

Vehicles with side air bag

1. Disconnect the passenger's seat side air bag module connector.

2. Connect the SST (diagnostic simulator) to the passenger's seat side air bag module body wiring harness electrical connector.

All vehicles

1. Lower the glove compartment.

(1) Depress the locking tabs.

2. Disconnect the passenger-side air bag module connector.

3. Connect the SST (diagnostic simulator) to the instrument panel wiring harness side of the passenger-side air bag module electrical connector.

4. Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)

5. Connect the SST (diagnostic simulator) to the steering column wiring harness side of the driver-side air bag module electrical connector.

6. Connect the negative battery cable.

7. Diagnose the air bag system (SRS). (See DTC INSPECTION.) (SeePID/DATA MONITOR INSPECTION.)

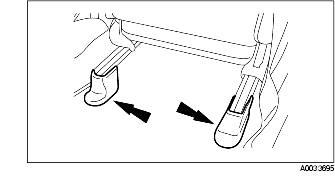

8. Remove the slide adjuster rear covers.

9. Remove the floor bolts.

10. Move the driver's seat rearward.

11. Remove the slide adjuster front covers.

12. Remove the driver's seat.

(1) Remove the floor bolts.

Caution

• Use care when handling a seat. Dropping a seat or sitting on one not secured in the vehicle may result in damaged components.

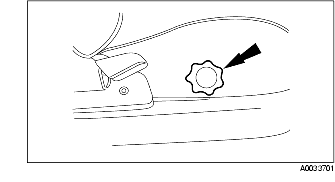

13. Remove the lift dial (if equipped).

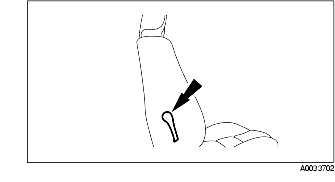

14. Remove the lumbar support lever (if equipped).

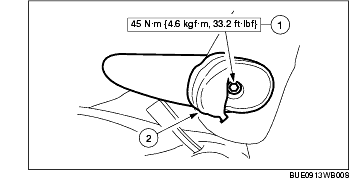

15. Remove the armrest (if equipped).

(1) Unzip the armrest trim.

(2) Remove the bolt.

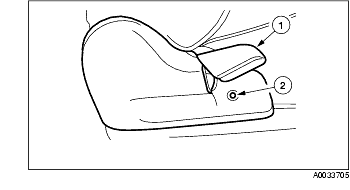

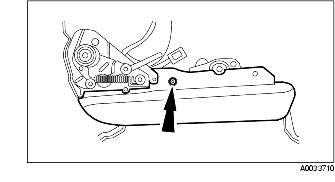

16. Remove the outboard seat cushion side shield.

(1) Remove the recliner lever.

(2) Remove the screw.

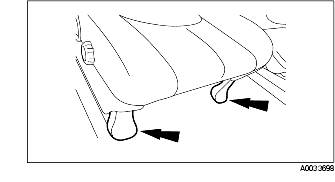

17. Detach the seat cushion trim clips.

18. Remove the seat cushion.

(1) Remove the four bolts.

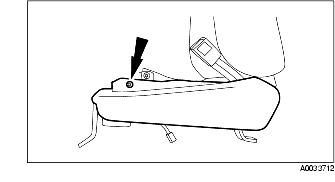

19. Remove the outboard side lower cover.

(1) Remove the three screws.

20. Remove the inboard side lower cover.

(1) Remove the screw and detach the clips from the slide adjuster.

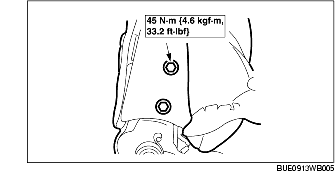

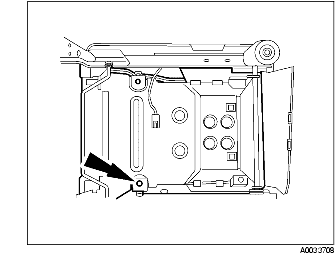

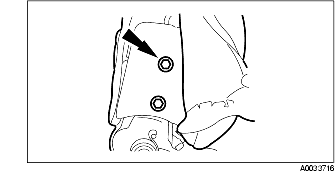

21. Remove the inboard front seat back bolt.

Note

• If equipped with a side air bag module, note the routing of the wiring harness for re-installation.

22. Remove the front seat back.

(1) Unzip the front seat back trim and remove the outboard bolts.

Installation

Warning

• Carry a live side air bag module with the air bag and tear seam pointed away from your body. This will reduce the risk of injury in the event of an accidental operation (deployment).

• Do not set a live side air bag module down on the cover tear seam. This will reduce the risk of injury in the event of an accidental operation (deployment).

• Never probe the connectors on the air bag module with a tester. Doing so can result in air bag operation (deployment), which can result in personal injury.

• Vehicle air bag sensor orientation is critical for proper air bag system (SRS) operation. If a vehicle equipped with an air bag supplemental restraint system (SRS) is involved in a collision, inspect the sensor mounting bracket and wiring harness connectors for deformation. Replace and properly position the sensor or any other damaged supplemental restraint system (SRS) components whether or not the air bag has operated (deployed).

• Refer to this manual to determine location of the crash zone sensors before work.

• The side air bag sensors are located at or near the base of the B-pillar.

• To deplete the backup power supply, disconnect the battery negative cable and wait for one minute or more. Be sure to disconnect auxiliary batteries and power supplies (if equipped).

• The SST (diagnostic simulator) is for air bag system (SRS) servicing only. Before using the vehicle, it must be removed. Failure to remove it could result in injury and loss of vehicle safety standards.

Note

• If a seat equipped with a seat mounted side air bag system is being serviced, the air bag system (SRS) must be deactivated. (See AIR BAG SYSTEM DEACTIVATION PROCEDURES.)

• The SST (diagnostic simulator) must be installed under the seats to the floor connector that is connected to the side air bag and the pre-tensioner seat belt (if equipped).

• After diagnosing/servicing a seat system the SST (diagnostic simulator) must be removed before operating the vehicle.

• If a side air bag operation (deployment) has taken place, a new seatback pad, seatback trim, and side air bag module must be installed. A new seatback frame should be installed if necessary.

All vehicles

1. Install the front seat back.

Install the outboard bolts.

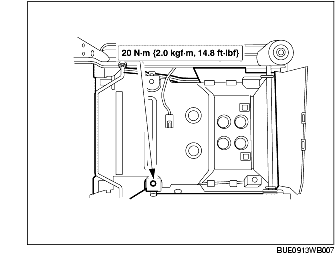

2. Install the inboard front seat back bolt.

3. Install the inboard side lower cover.

(1) Install the screw.

4. Install the outboard side lower cover.

(1) Install the three screws.

5. Install the seat cushion.

(1) Install the bolts.

6. Attach the seat cushion trim clips.

7. Install the outboard side cover.

(1) Install the screw.

(2) Install the recliner lever.

8. Install the armrest (if equipped).

(1) Install the bolt.

(2) Zip the armrest trim.

9. Install the lumbar support lever (if equipped).

10. Install the lift dial (if equipped).

11. Install the driver's seat.

(1) Install the floor bolts to the slide adjuster.

Caution

• Use care when handling a seat. Dropping a seat or sitting on one not secured in the vehicle may result in damaged components.

12. Install the slide adjuster front covers.

13. Move the driver's seat forward.

14. Install the floor bolts to the slide adjuster.

15. Install the slide adjuster rear covers.

16. Disconnect the negative battery cable and wait 1 min or more.

Vehicles with side air bag

1. Remove the SST (diagnostic simulator) from the driver's seat side air bag module body wiring harness electrical connector.

Warning

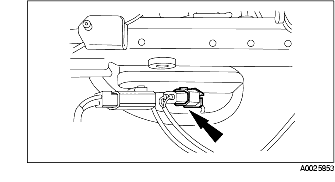

2. Connect the driver-side side air bag module connector.

All vehicles

1. Remove the SST (diagnostic simulator) from the driver-side pre-tensioner seat belt body harness electrical connector.

Warning

2. Connect the driver's seat pre-tensioner seat belt connector.

3. Connect the negative battery cable.

4. With the remaining SST (diagnostic simulator) still in place, diagnose the air bag system (SRS). (See DTC INSPECTION.) (SeePID/DATA MONITOR INSPECTION.)

5. Disconnect the negative battery cable and wait 1 min or more.

6. Remove the SST (diagnostic simulator) from the passenger seat pre-tensioner safety belt body wiring harness electrical connector.

Warning

7. Connect the passenger-side pre-tensioner seat belt connector.

Vehicles with side air bag

1. Remove the SST (diagnostic simulator) from the passenger's side air bag module body wiring harness electrical connector.

Warning

2. Connect the passenger-side side air bag module connector.

All vehicles

1. Remove the SST (diagnostic simulator) from the instrument panel wiring harness side of the passenger-side air bag module electrical connector.

Warning

2. Connect the passenger-side air bag module connector.

3. Raise the glove compartment.

(1) Depress the locking tabs.

4. Remove the SST (diagnostic simulator) from the steering column wiring harness side of the driver-side air bag module electrical connector.

Warning

5. Install the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)

6. Connect the negative battery cable.

7. Diagnose the air bag system (SRS). (See DTC INSPECTION.) (See PID/DATA MONITOR INSPECTION.)

8. Inspect the air bag system (SRS) for correct operation.
