REAR SEAT RECLINER KNUCKLE DISASSEMBLY/ASSEMBLY

1. Remove the rear seat back. (See REAR SEAT BACK REMOVAL/INSTALLATION.)

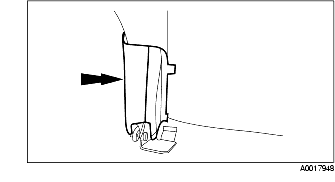

2. Remove the recliner cover.

3. Remove the rear seat recliner knuckle.

(1) Remove the bolt.

(2) Remove the nut.

(3) Remove the rear seat recliner knuckle.

4. Install in the reverse order of removal.
