FRONT OUTER HANDLE REMOVAL/INSTALLATION

1. Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION.)

Note

• Verify that the window glass is fully closed.

2. Position the door screen out of the way.

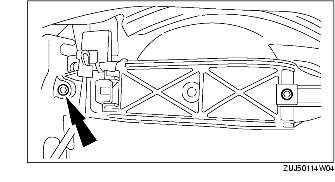

3. Remove the front outer handle screw.

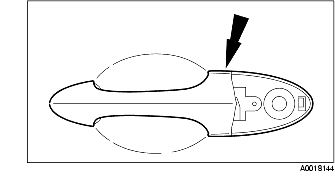

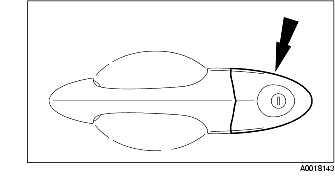

4. Remove the door key cylinder cover.

5. Remove the outer handle.

6. Install in the reverse order of removal.
