REAR OUTER HANDLE REMOVAL/INSTALLATION

1. Remove the rear door trim. (See REAR DOOR TRIM REMOVAL/INSTALLATION.)

2. Position the door screen out of the way.

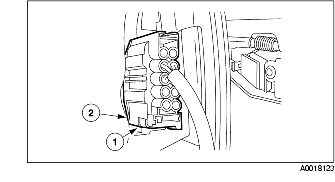

3. Disconnect the door latch connector.

(1) Disengage the clip.

(2) Disconnect the connector.

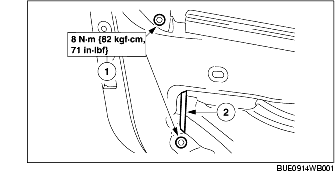

4. Position the glass guide out of the way.

(1) Remove the bolts.

(2) Position the glass guide out of the way.

5. Disconnect the outer handle rod.

(1) Open the clip.

(2) Disconnect the rod.

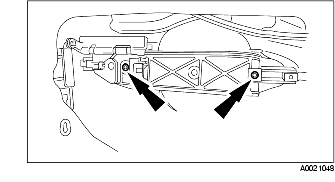

6. Remove the outer handle screws.

7. Remove the outer handle.

8. Install in the reverse order of removal.
