FUEL-FILLER LID OPENER LEVER AND CABLE REMOVAL/INSTALLATION

1. Remove the driver-side B pillar trim.(See B-PILLAR TRIM REMOVAL/INSTALLATION.)

2. Remove the fuel-filler lid opener.(See FUEL-FILLER LID OPENER REMOVAL/INSTALLATION.)

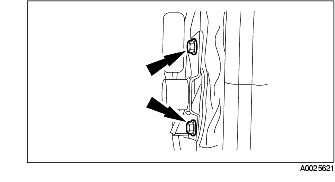

3. Remove the fuel-filler lid opener lever bolts.

4. Remove the rear seat bracket.(See REAR SEAT BACK REMOVAL/INSTALLATION.)

5. Remove the rear seat cushion.

6. Remove the pin and position the carpet out of the way.

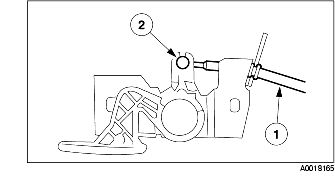

7. Disconnect the fuel-filler lid release lever cable.

(1) Release the cable conduit.

(2) Disconnect the cable.

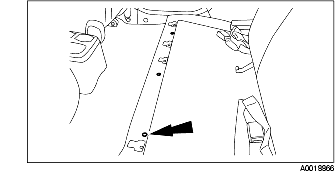

8. Remove the fuel-filler lid release lever cable.

(1) Remove the cable locator.

9. Install in the reverse order of removal.
