DEFLECTOR REMOVAL/INSTALLATION

1. Open the glass panel.

2. Remove the sunroof unit. (SeeSUNROOF UNIT REMOVAL/INSTALLATION.)

3. Remove the deflector.

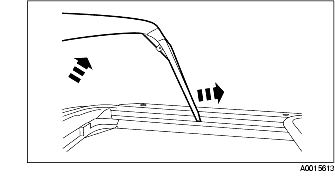

(1) Lift up the deflector and slide it rearward to remove the deflector.

4. Install in the reverse order of removal.
