SUNROOF UNIT REMOVAL/INSTALLATION

id091500800700

1. Remove the headliner. (See HEADLINER REMOVAL/INSTALLATION.)

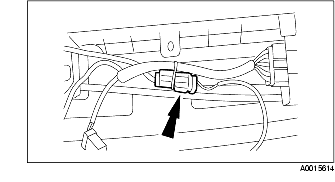

2. Disconnect the connector.

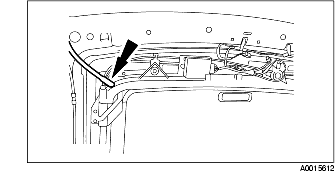

3. Disconnect the four drain hoses.

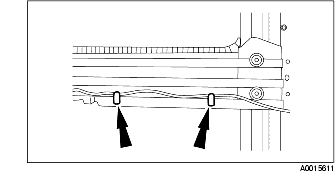

4. Disengage the wiring harness locators.

5. Remove the sunroof unit.

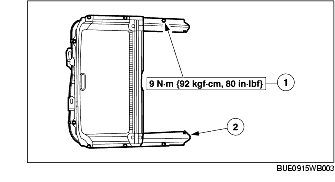

(1) Remove the five sunroof unit bolts and four nuts.

(2) Remove the sunroof unit.

6. Install in the reverse order of removal.
