HEADLINER REMOVAL/INSTALLATION

Vehicles Equipped with Overhead Console

1. Remove the overhead console.

(1) Open the front console cover.

(2) Remove the screws.

(3) Remove the overhead console.

• Disconnect the connector (if equipped).

All Models

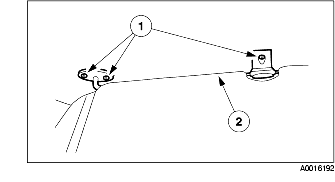

1. Remove the two sunvisors and two clips.

(1) Remove the six screws.

(2) Remove the two sunvisors and two clips.

2. Remove the eight assist handle covers.

3. Remove the four assist handles.

(1) Remove the eight bolts.

(2) Remove the four assist handles.

4. Open the four A-pillar assist handle covers.

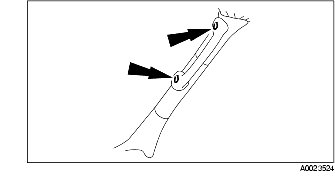

5. Remove the two A-pillar assist handles.

(1) Remove the four bolts.

(2) Remove the two A-pillar assist handles.

6. Remove the two A pillar trims.

7. Remove the sunroof molding (if equipped).

8. Remove the seat belt guide cover.

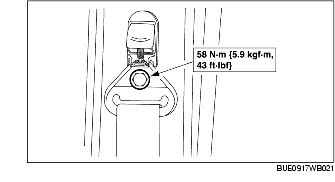

9. Remove the seat belt guide bolt.

10. Position the front and rear weatherstrip out of the way.

11. Remove the B-pillar upper trim.

12. Remove the two C pillar trims. (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

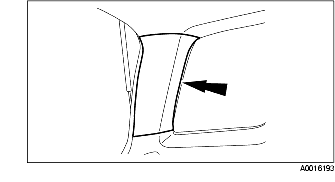

13. Remove the two D-pillar trims.

14. Remove the front interior light lens.

15. Remove the front interior light.

(1) Remove the screws.

(2) Remove the front interior light.

• Disconnect the connector.

16. Remove the rear interior light.

(1) Disconnect the connector.

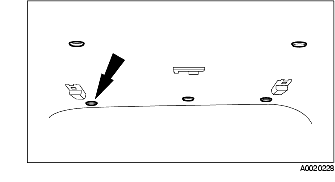

17. Remove the five pins.

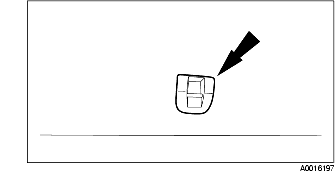

18. Remove the two child-restraint seat anchor covers (if equipped).

19. Remove the two bolts and the child-restraint seat anchor (if equipped).

20. Remove the headliner.

21. Install in the reverse order of removal.
