SUNROOF MOTOR REMOVAL/INSTALLATION

id091500801800

Removal

1. Close the glass panel.

2. Remove the headliner. (See HEADLINER REMOVAL/INSTALLATION.)

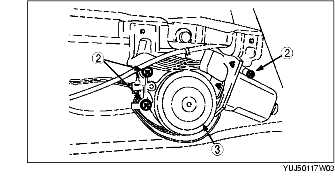

3. Remove the sunroof motor.

(1) Disconnect the connector.
(2) Remove the bolts.
(3) Remove the sunroof motor.

Installation

Note
• The glass panel must be fully closed.

1. Connect the sunroof motor connector.

2. With the motor still removed, press the sunroof switch once only towards the close or vent open position.

3. Install the sunroof motor.

(1) Position the glass panel.
(2) Install the bolts.

4. Verify that the sunroof motor operates normally.

5. Install the headliner. (See HEADLINER REMOVAL/INSTALLATION.)
