SUNROOF RELAY REMOVAL/INSTALLATION

1. Remove the headliner. (See HEADLINER REMOVAL/INSTALLATION.)

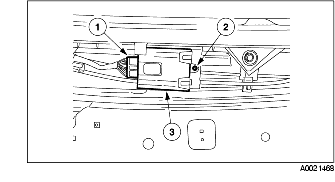

2. Remove the sunroof relay.

(1) Disconnect the connector.

(2) Remove the screw.

(3) Remove the sunroof relay.

3. Install in the reverse order of removal.
