REAR DRAIN HOSE REMOVAL/INSTALLATION

1. Remove the headliner. (See HEADLINER REMOVAL/INSTALLATION.)

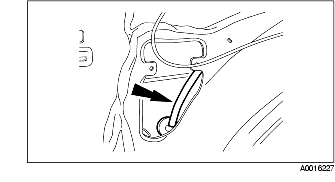

2. Disconnect the rear drain hose.

3. Remove the rear drain hose.

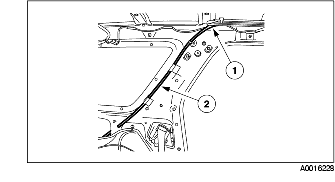

(1) Disconnect the rear drain hose from the sunroof unit.

(2) Remove the rear drain hose.

4. Install in the reverse order of removal.
