FRONT FENDER MOLDING REMOVAL/INSTALLATION

id091600802100

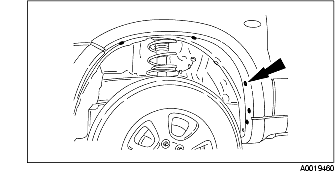

1. Remove the front fender molding screw.

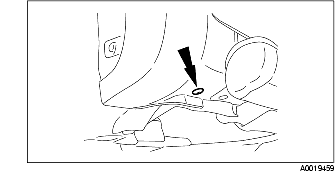

2. Remove the front fender molding pin.

3. Remove the front fender splash shield. (See FRONT FENDER SPLASH SHIELD REMOVAL/INSTALLATION.)

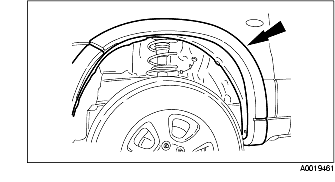

4. Remove the front fender molding.

Note

• The front fender molding clips are one-time use only. New clips must be used during installation.

5. Install in the reverse order of removal.
