FRONT FENDER SPLASH SHIELD REMOVAL/INSTALLATION

id091600802200

1. Remove the front tires and wheels. (See WHEEL AND TIRE REMOVAL/INSTALLATION.)

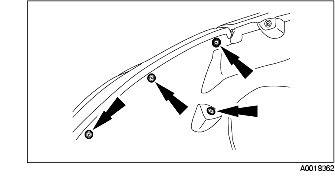

2. Remove the front fender splash shield pins.

3. Remove the front fender splash shield screws.

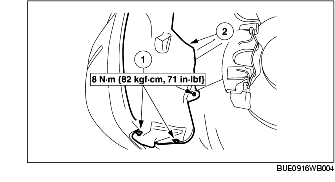

4. Remove the front fender splash shield.

(1) Remove the bolts.

(2) Remove the front fender splash shield.

5. Install in the reverse order of removal.
