WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION

id091900474600

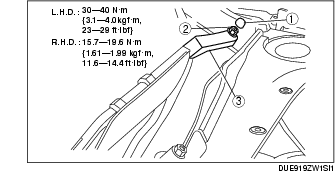

1. Remove in the order indicated in the table.

1
Cap
2
Nut
3
Windshield wiper arm

2. Install in the reverse order of removal.

3. Remove the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE ADJUSTMENT.)

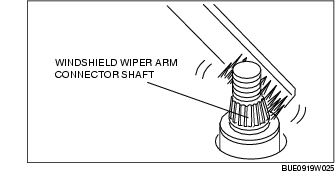

Windshield Wiper Arm Installation Note

1. Clean the windshield wiper arm connector shafts using a wire brush before installing the windshield wiper arms.
