Reveal Molding on Windshield, Removal/Installation
Removal and installation of reveal molding on windshieldRemoval

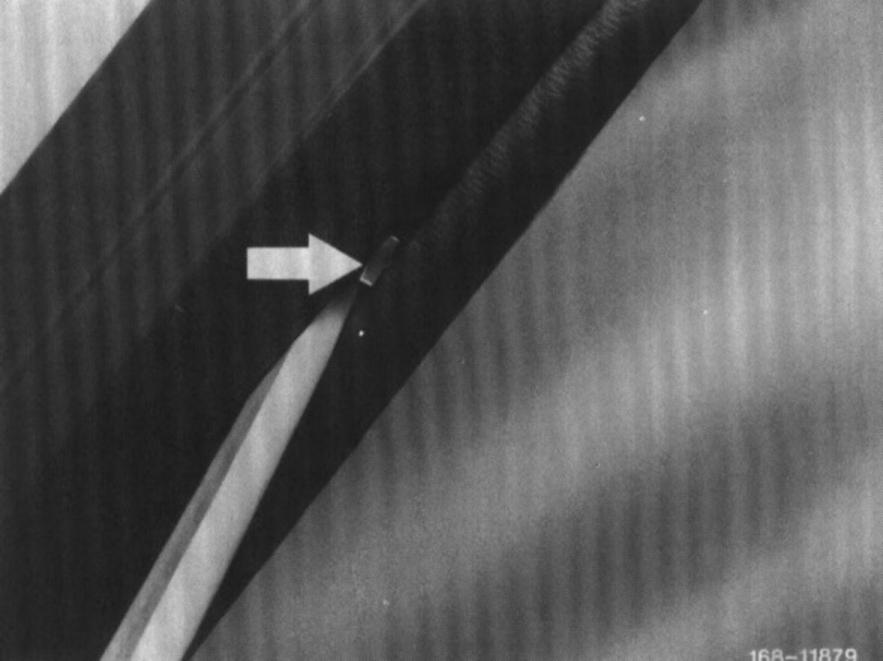

1 Pry bottom reveal molding toward center of car out of front panel pillar with a plastic wedge.

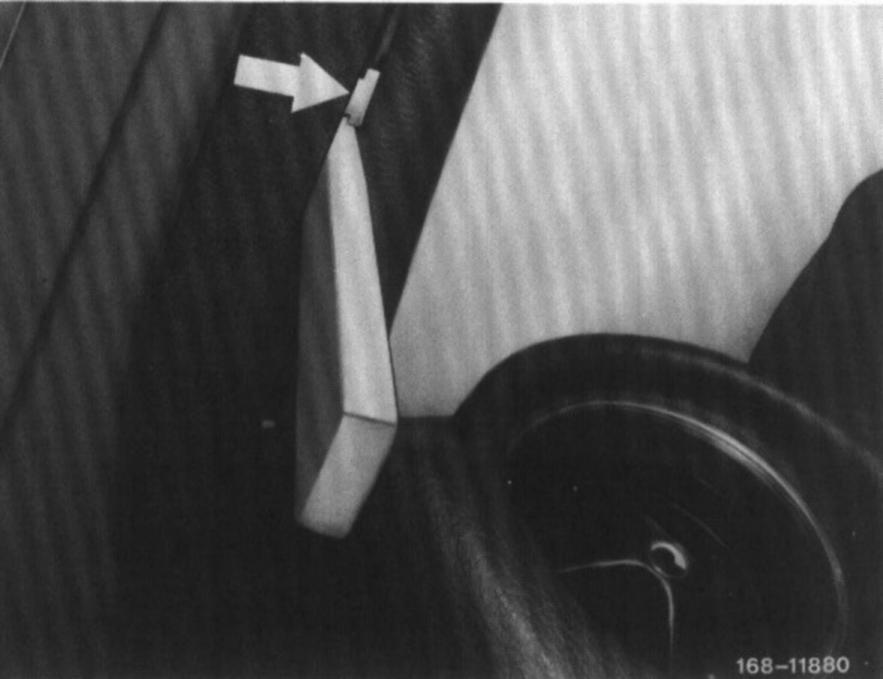

2 Pry upper reveal molding out of front wall pillar.
3 Press bottom reveal molding forward toward windshield, so that upper reveal molding can be lifted out of trim.
Installation
4 Install in reverse sequence.
