Supplemental Harness

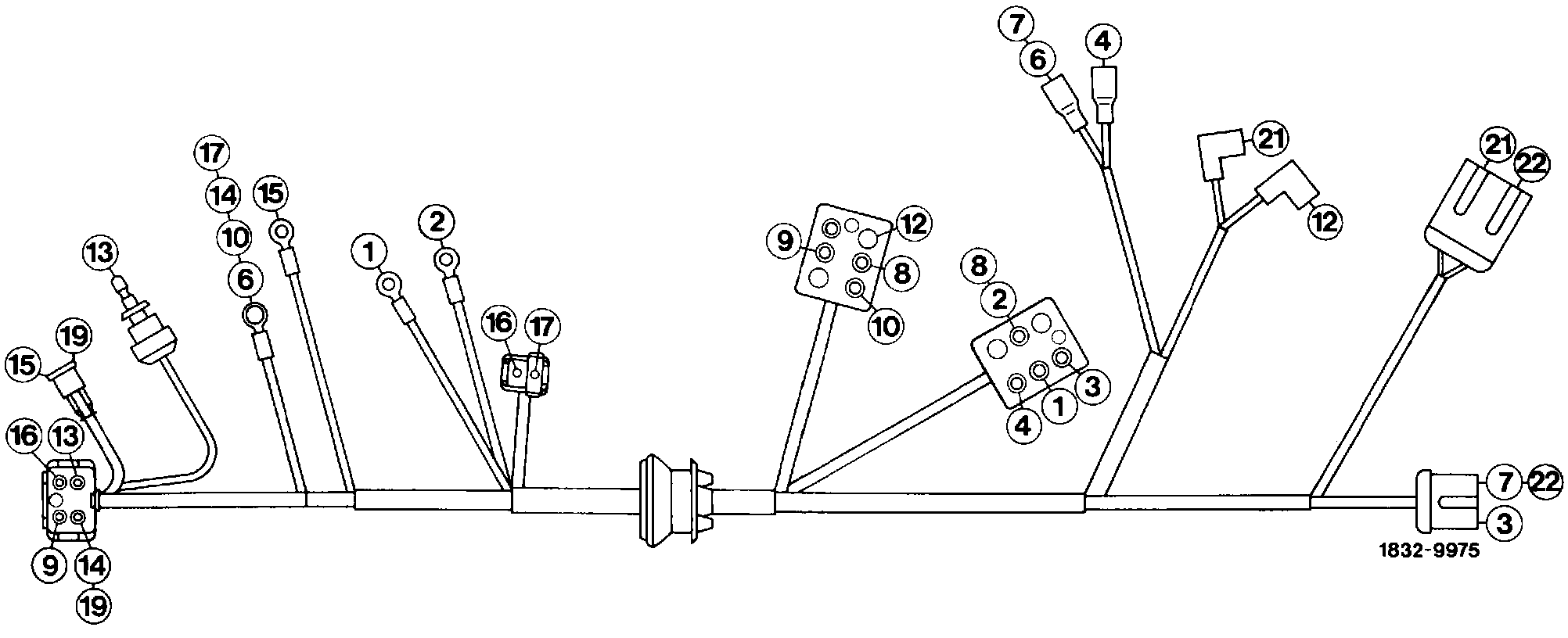

Supplementary Harness:

COLOR CODE
LEGEND
1 = Red/Black - From Fuse C to Terminal 30 to Relay Supplementary Fan Terminal 30
2 = Black/Red - Fuse 12 Terminal 15 to Relay Supplementary Fan Terminal 86
3 = Yellow - Relay Supplementary Fan Terminal 87 to Supplementary Fan
4 = Brown/Yellow - Relay Supplementary Fan Terminal 85 to Temperature Switch 52°C
6 = Brown - Ground to Temperature Switch 52°C
7 = Brown - Temperature Switch 52°C to Supplementary Fan
8 = Black/Red - Relay Supplementary Fan Terminal 86 to Relay Refrigerant compressor Terminal 30
9 = Black/Red/Green - Temperature Dial terminal 2 to Relay Refrigerant compressor terminal 86
10 = Brown - Ground to Relay Refrigerant Compressor Terminal 85
12 = Blue/White - Relay Refrigerant Compressor terminal 85 to Pressure Switch Refrigerant compressor
13 = Blue/Black - Resistor Group to Temperature Dial Terminal 3
14 = Brown - Temperature Dial Terminal 4 to Ground
15 = Gray/Purple - Rotary Light Switch Terminal K to Bulb Socket
16 = Blue/Yellow - Switchover Valve Fresh Air/Recirculating Air to Temperature Dial Terminal 1
17 = Brown - Switchover Valve Fresh Air/Recirculating Air to Ground
19 = Brown - Temperature Dial Terminal 4 to Bulb Socket
21 = Blue/White - Pressure Switch Refrigerant Compressor to Refrigerant Compressor
22 = Brown - Ground to Refrigerant Compressor
