Heater Control Valve: Service and Repair

Removing and Installing Monovalve

Removal
1. Drain approx. 2 liters of radiator coolant.

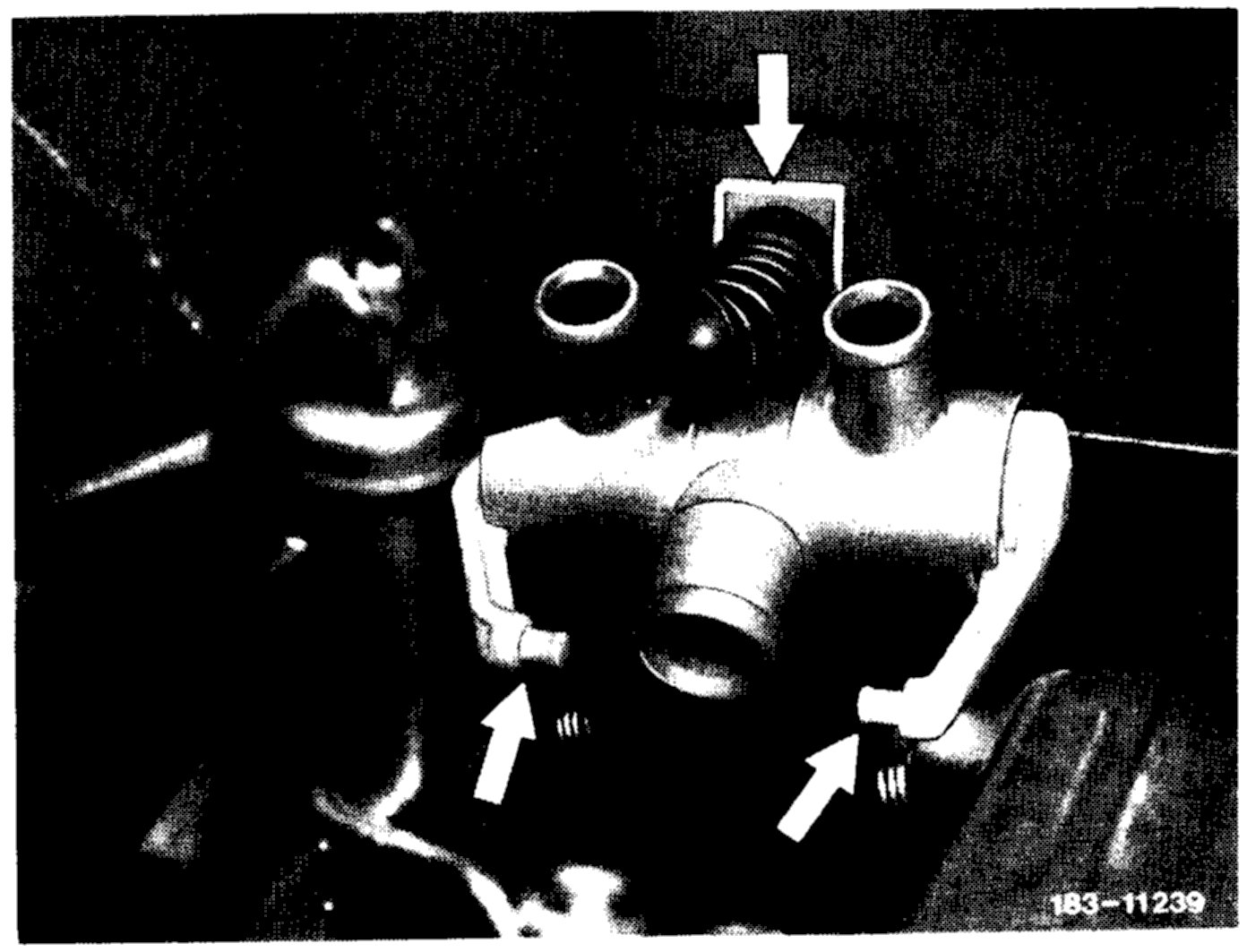

Heater Valve:

Heater Valve Disassembly:

2. Loosen all hose clips on water valve.
3. Pull off heater hoses and disconnect both wires.
4. Remove screw and remove water valve from firewall.

Installation
Install in reverse order.
