Oil Pan, Engine

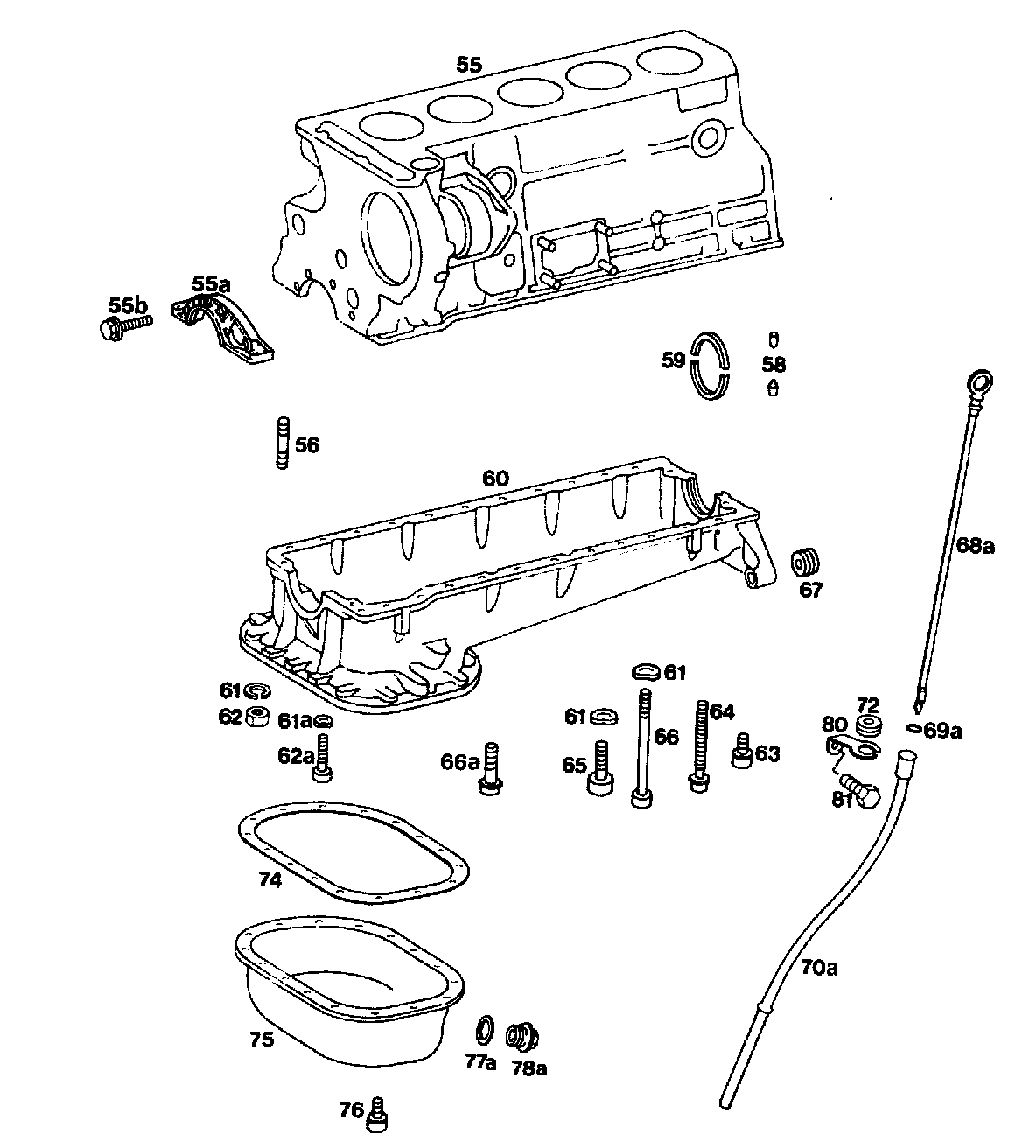

Cylinder crankcase and oil pan





55 Cylinder crankcase
55a Cover
55b 4 combination screws M 6 x 25
56 2 screws M8 x 25
58 Locking pin
59 Crankshaft radial sealing ring
60 Oil pan top
61 4 spring washers B 8
61a 2 spring washers B 6
62 2 nuts M 8
62a 2 screws M 6 x 20
63 16 combination screws M 6 x 15
(engine 617.950/952)
14 combination screws M 6 x 15
(engine 617.951)
64 2 combination screws M 6 x 60
(engine 617.950/952)
8 combination screws M 6 x 60
(engine 617.951)
65 4 combination screws M 6 x 30
(engine 617.950/952
66 2 screws M 8 x 95
66a 2 screws M 8 x 20
67 2 threaded inserts 10/14 x 20 (engine 617.950/952)
68a Oil dipstick
69a O-ring
70a Oil dipstick guide tube
72 Rubber grommet
74 Gasket
75 Oil pan lower half
76 Combination screw M6 x 15 (19 each)
77a Sealing ring A 12 x 17
78a Oil drain plug M 12
80 Holder for oil dipstick guide tube
81 Screw M8 x 12
