Oil Leakage at Governor Pressure Measuring Point

CAUSE/REMEDY:

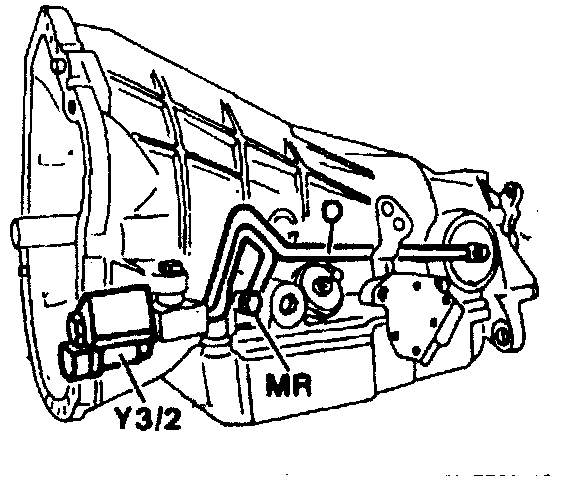

Deformed pressure oil line at governor pressure measuring point (MR).





1. Detach bracket for switchover valve (Y3/2) from transmission housing. - Unscrew oil line (O) at cover of centrifugal governor and pressure oil line at governor pressure measuring point (MR).
2. Install banjo bolt bolts with new aluminum seal rings. Then tighten pressure oil line (MR) first. Afterwards tighten oil line (O) and bracket for switchover valve.
