Engine - Coolant Temperature Sensor/Switch: Specifications

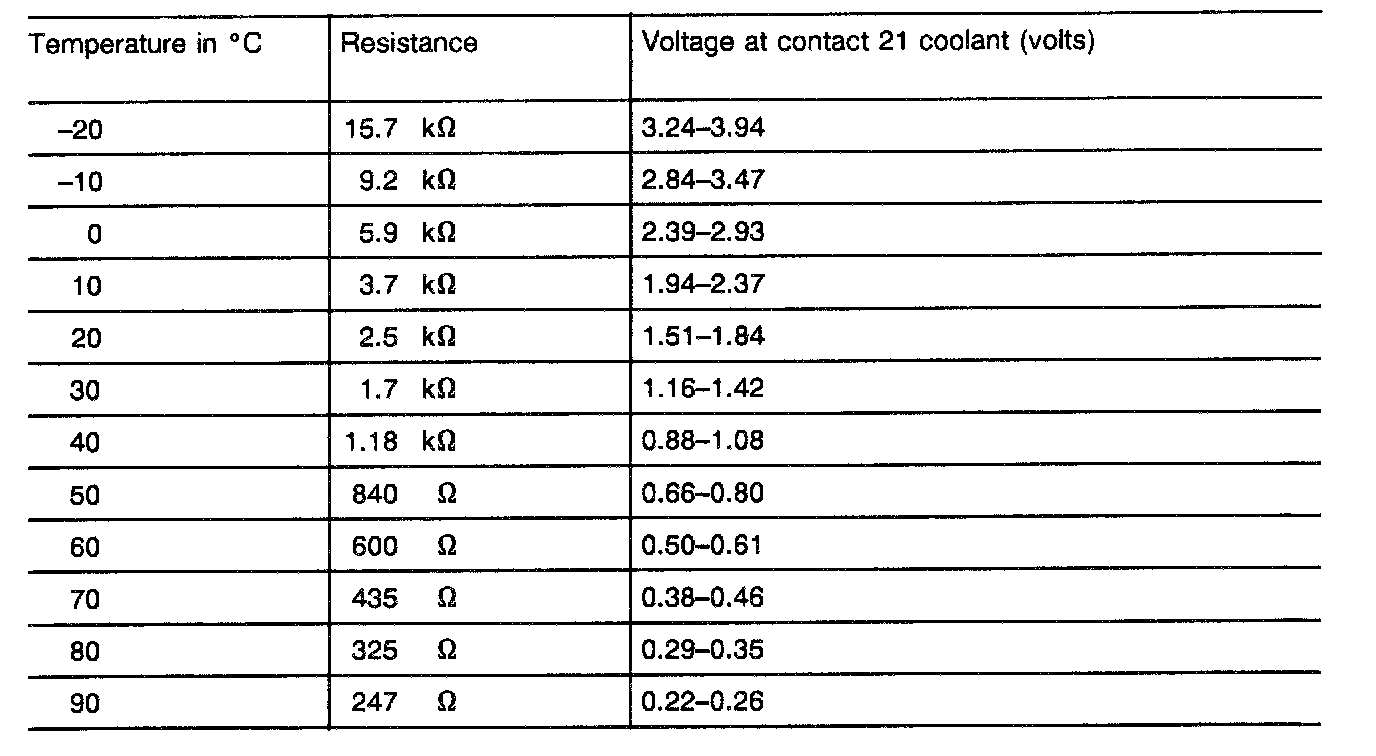

I) Table of voltage values for engine coolant temperature sensor





Note:
For engine 102.961 only the engine coolant temperature sensor (B11/3) with the M14x1,5 thread is supplied for parts requirements. When performing repairs, fit the temperature sensor in place of the M 14 x 1.5 plug.

The previous installation point should be sealed with the M 10 x 1 plug, Part No.007 604 01 01 02, and seal, Part No.007 603 01 01 01.
