Windshield Washer Relay: Locations
Fuse and Relay Block Identification and Location

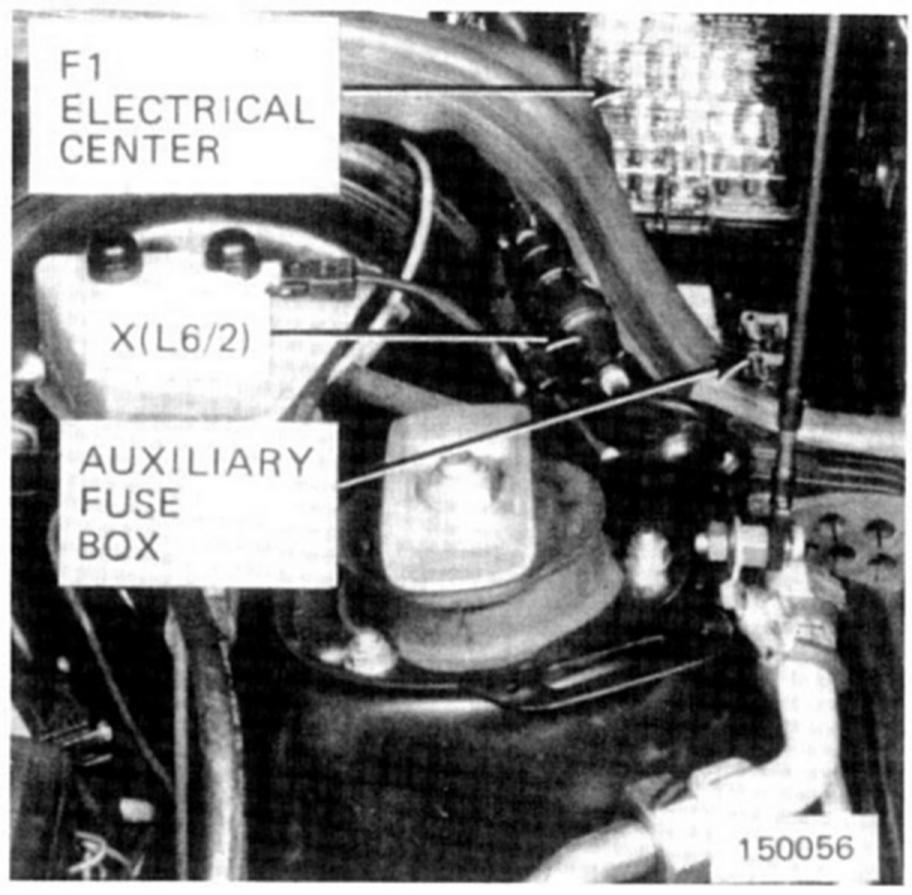

The fuse/relay box is located in the left side of the engine compartment.

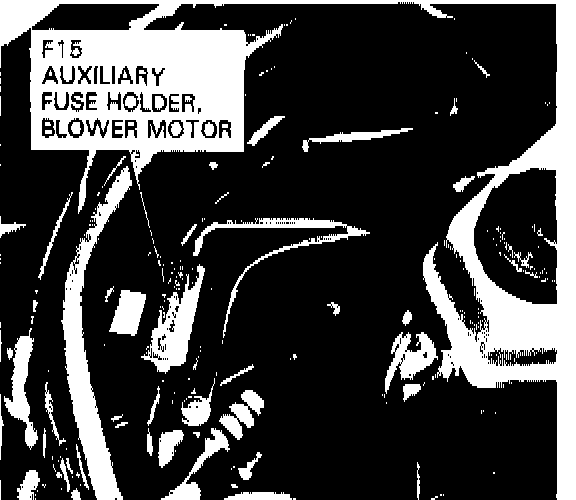

F15 - Aux. Fuse Holder for Blower Motor (Near Brake Fluid Reservoir):
The auxiliary fuse holder is located in the engine compartment near brake fluid reservoir.

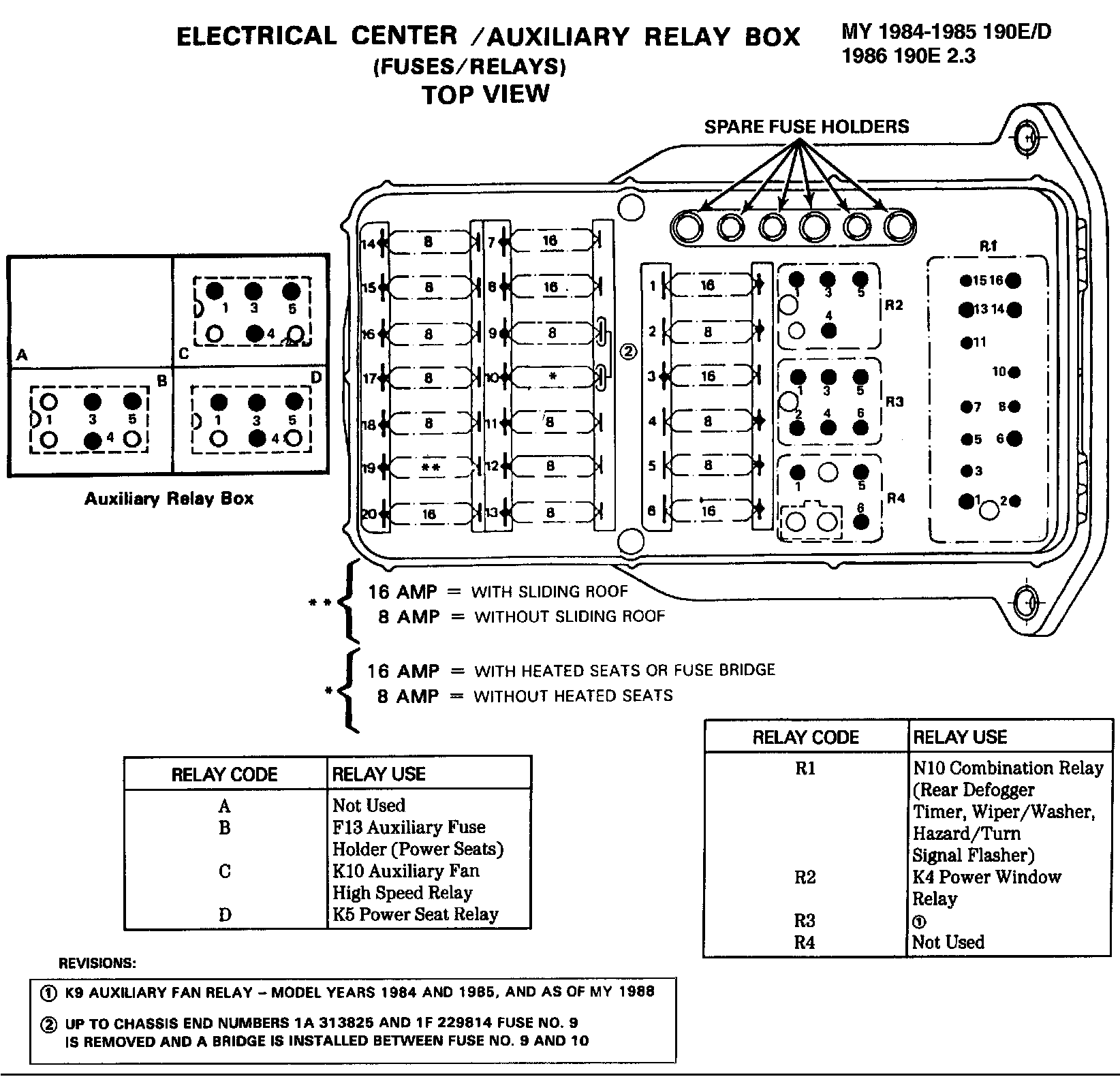

Fuse & Relay Box Layout / Relay Identification (Top View):

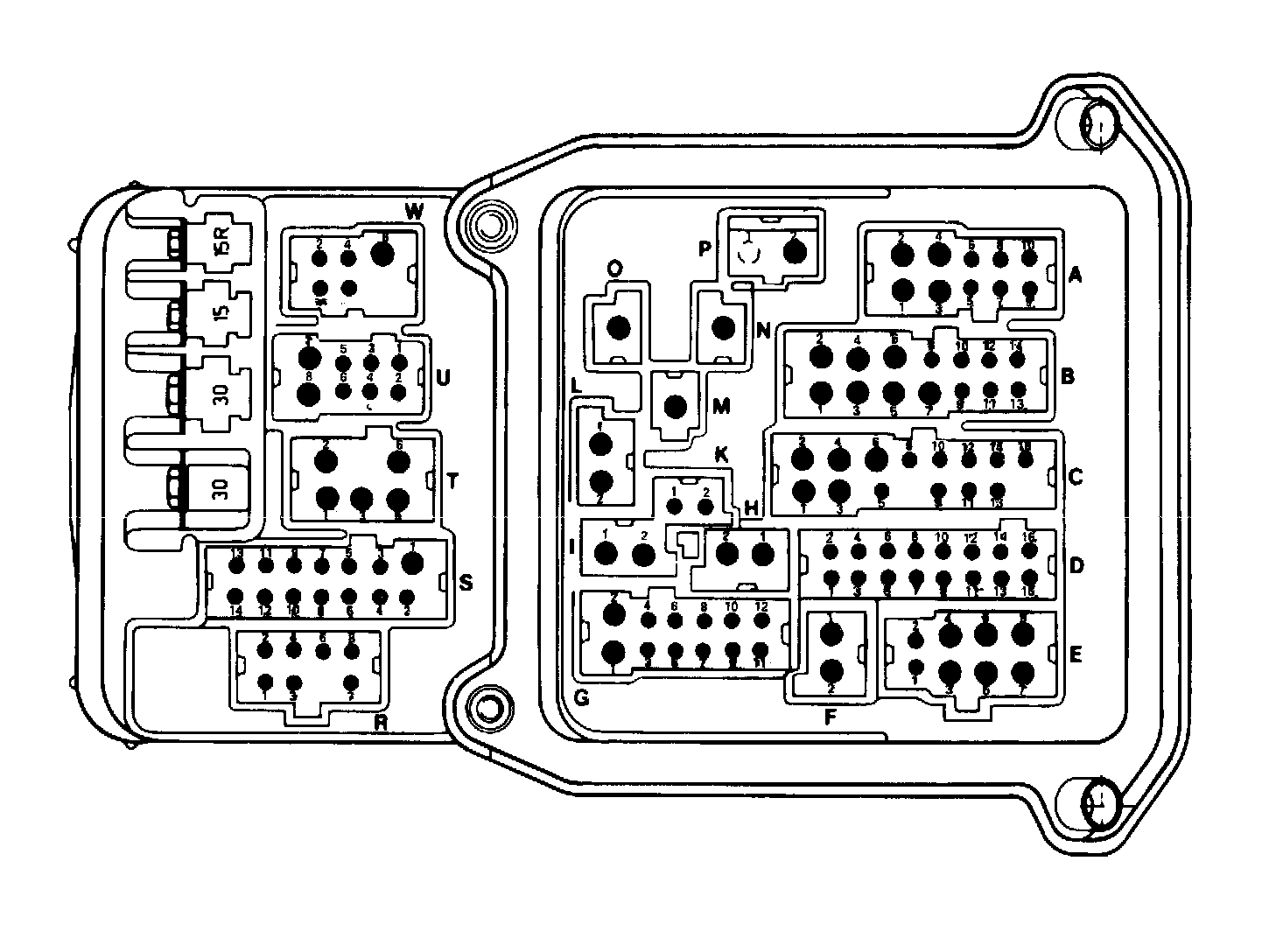

Fuse & Relay Box (Bottom View):

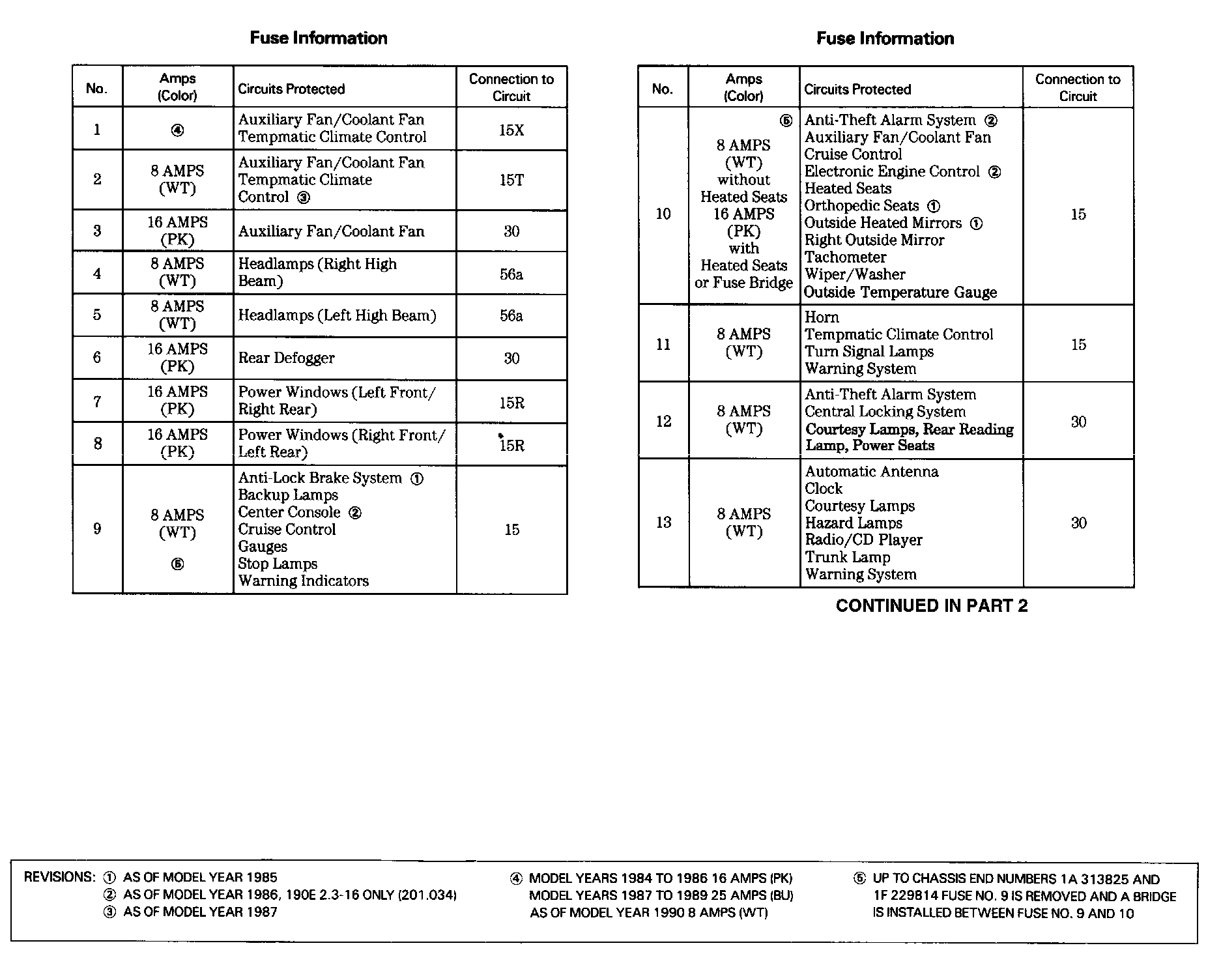

Fuse Identification (Part 1):
Fuse Identification (Part 2):
