Selected Speed Indicator of Floor-Mounted Shift

General
When the lighting is switched on, the selector lever position engaged is illuminated more brightly in the speed indicator shift panel than the general illumination by a fiber optic cable (50).

Function

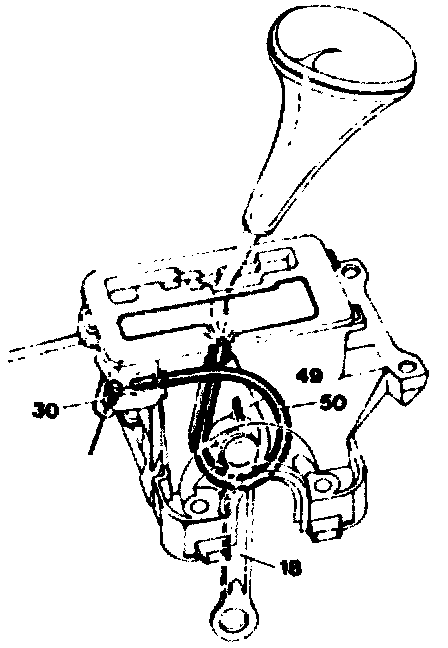

The carrier (49) is attached to the shaft (18) by 2 plastic clips. The fiber optic cable (50) is clipped the carrier (49) and to the bearing block. Each time the position of the selector lever is altered, the fiber optic cable (50) moves in unison and the respective position designation in the gear indicator panel is illuminated.





18. Shaft
30. Bulb
49. Carrier
50. Fiber optic cable
