Single Door System

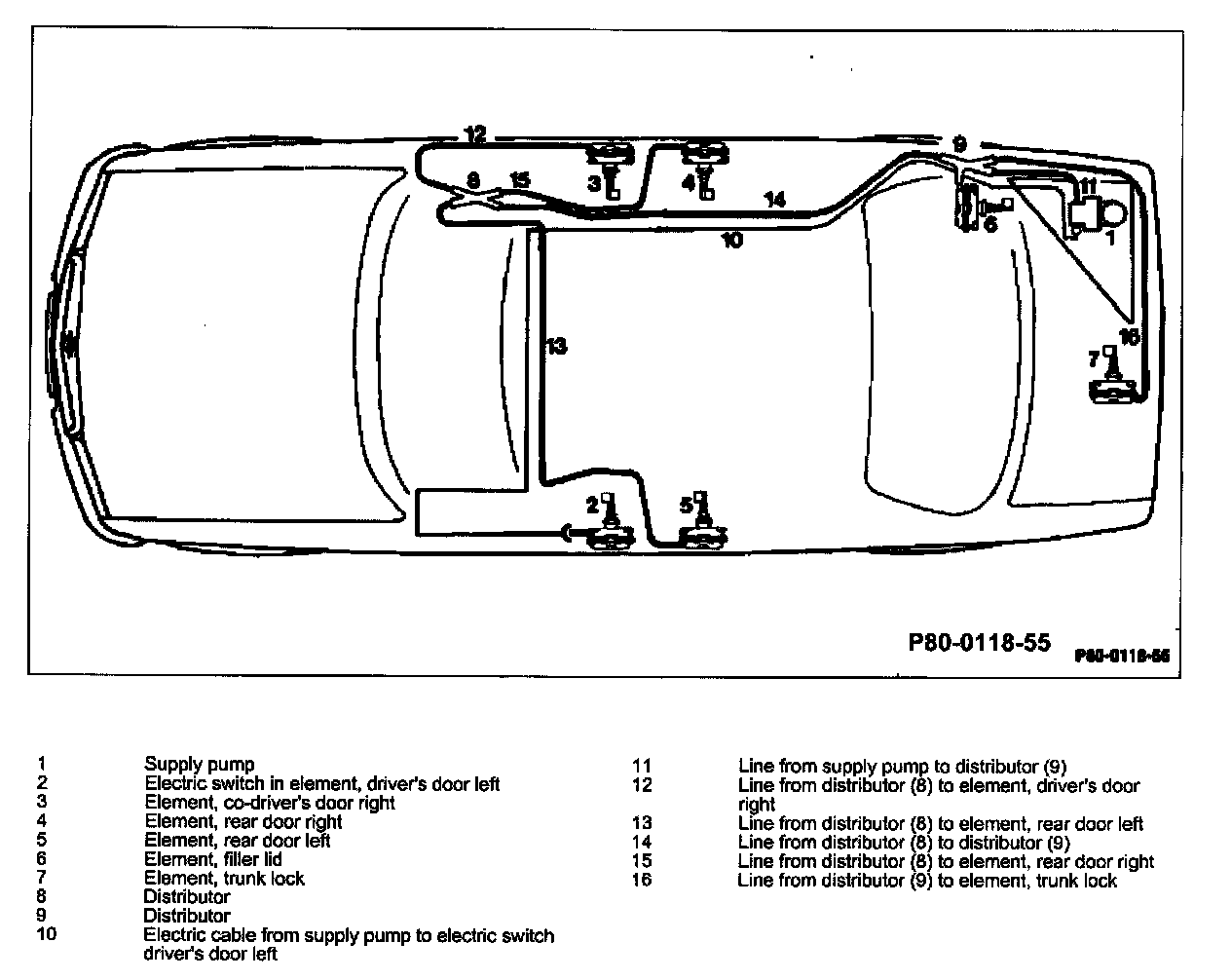

Function diagramsA. 1st version (supply pump in engine compartment) up to approx. 02/80
Note: On righthand steering vehicles pans 2 and 3 are located as mirror image.
B. 2nd version (supply pump in spare wheel well) starting approx. 03/80
Note: On righthand steering vehicles parts 2 and 3 are located as mirror image.
