Rear Seat (Non-Power), Remove/Install

Removal

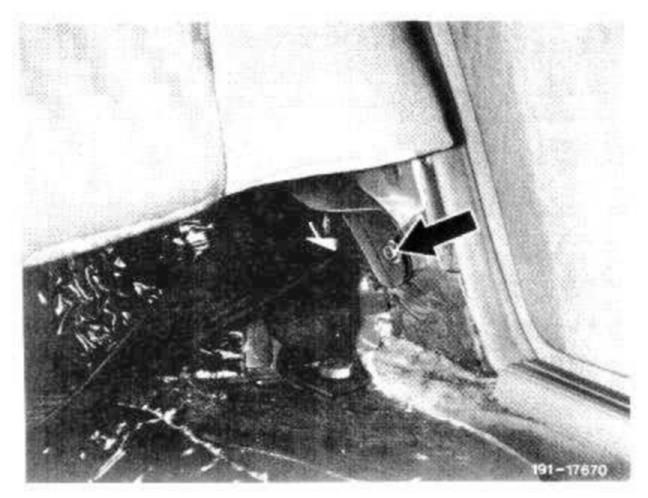

1 Push locking lever left and right up to stop in outward direction and raise rear seat cushion at the front.

2 Lift off rear seat cushion.

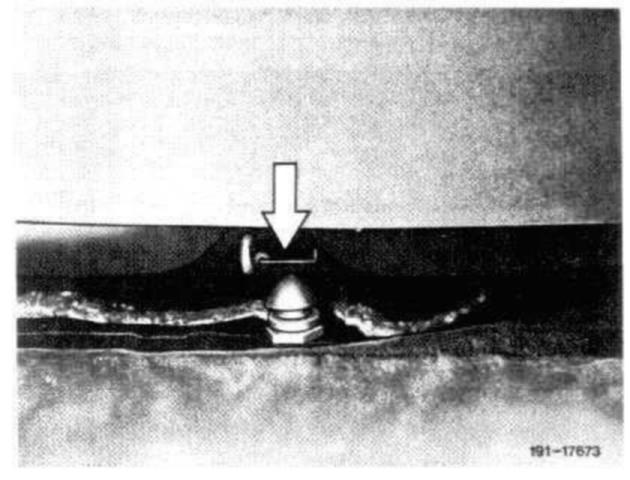

3 Unscrew screw at rear seat backrest left and right.

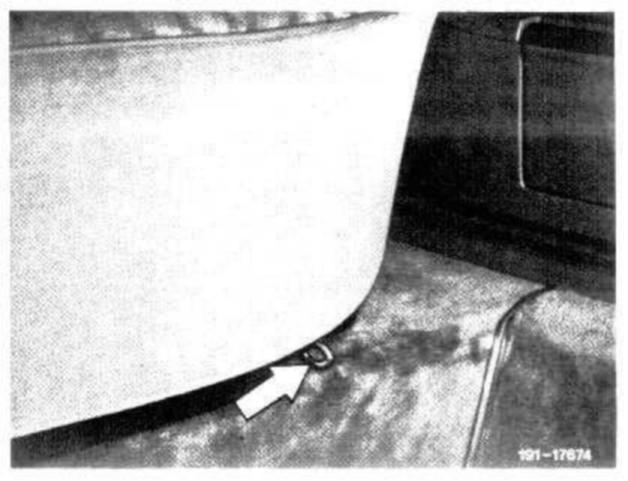

4 Unscrew screw under center armrest.

5 Remove rear seat backrest in upward direction.

Installation

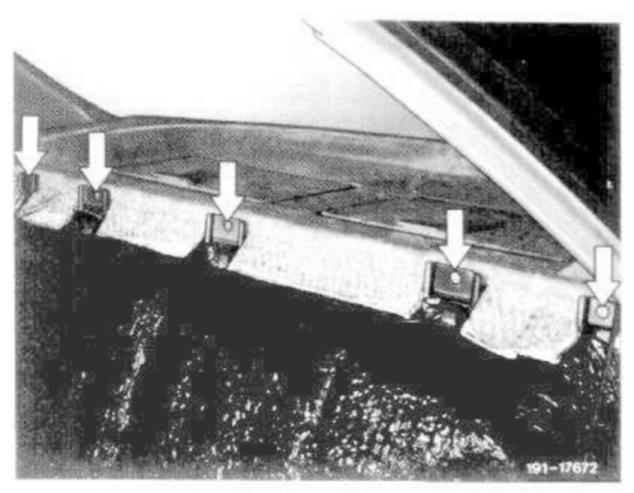

6 Introduce rear seat backrest from above into five fastening plates.





7 Screw down rear seat backrest below.





8 Slide rear seat cushion with rear edge up to stop under rear seat backrest and push down at the front until seated.
