Remove/Install Cover Under Instrument Panel

Removal and installation of cover under panel

- Glove box removed.
- Outer footwell covering (only front passenger side) removed.


Removal

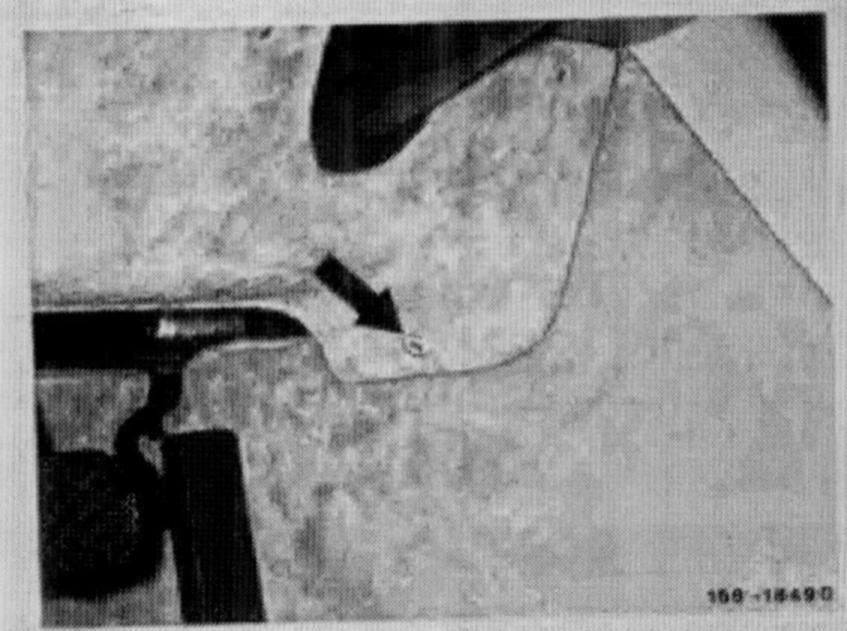

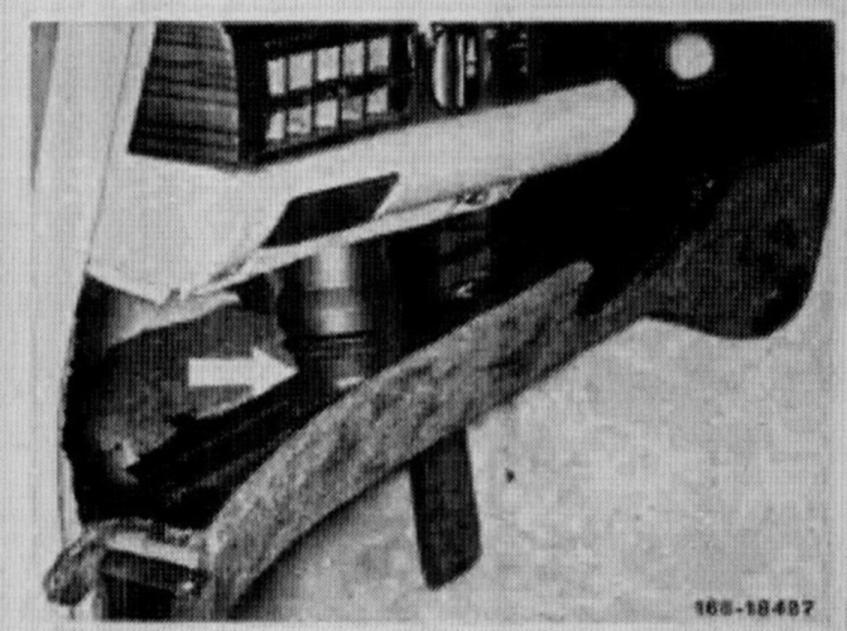

1. Unscrew screw on front wall pillar.

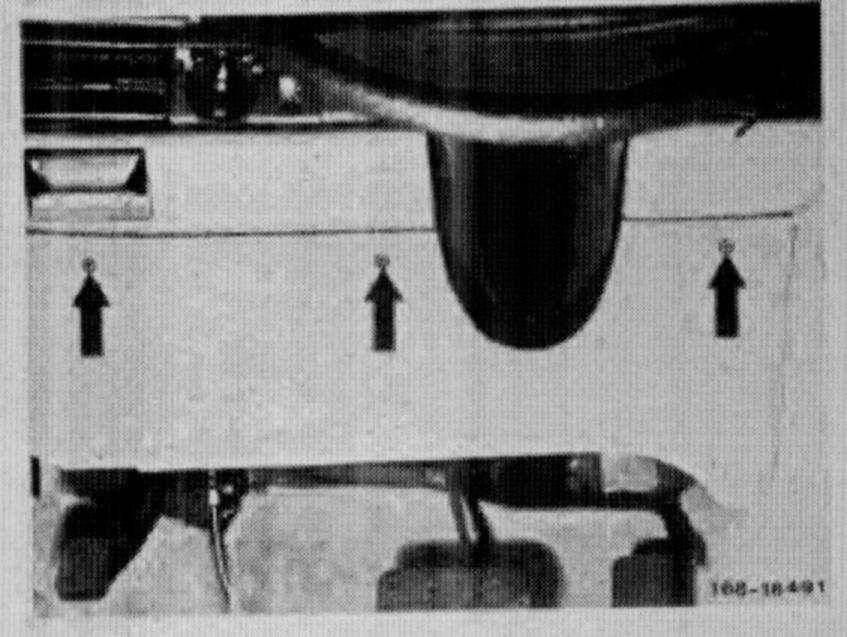

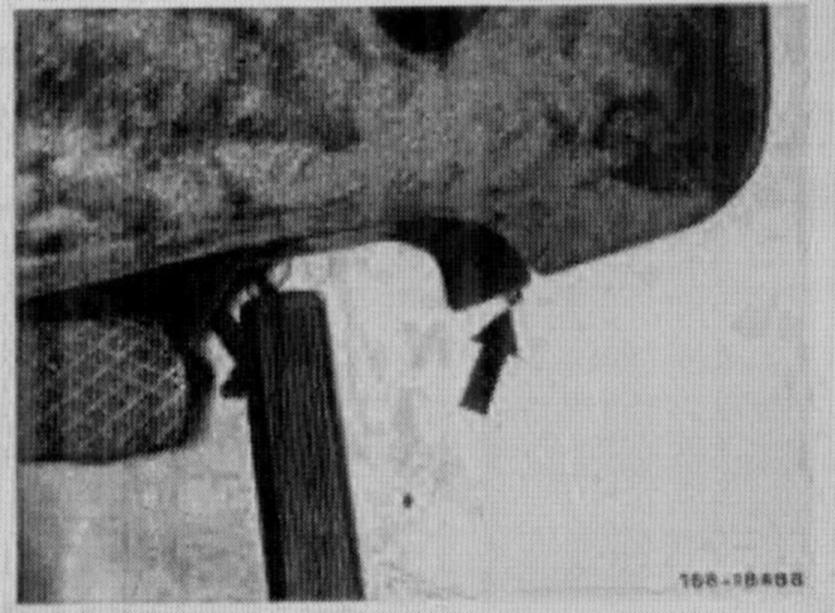

2. Unscrews on instrument panel.




3. Turn plastic clip on center console by 90° to the left and pull out.
4. Remove cover.


Installation

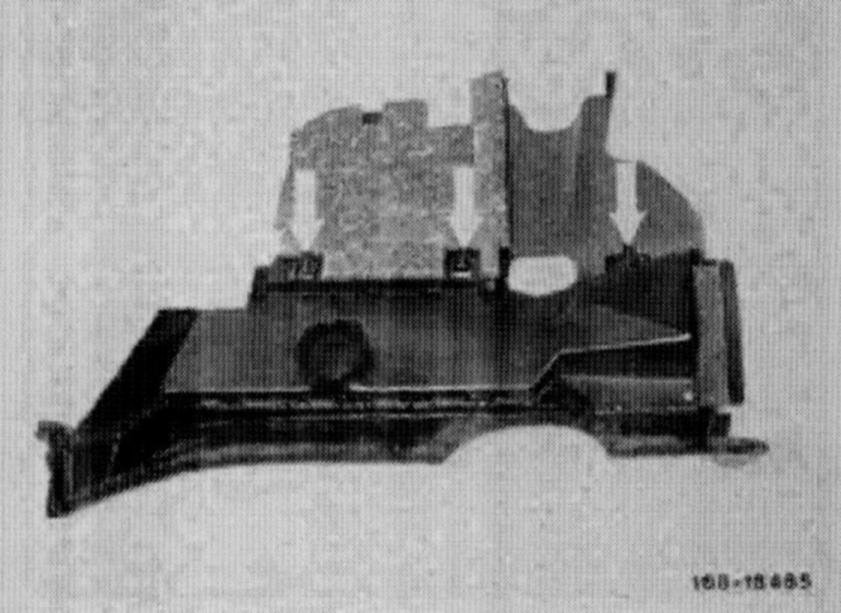

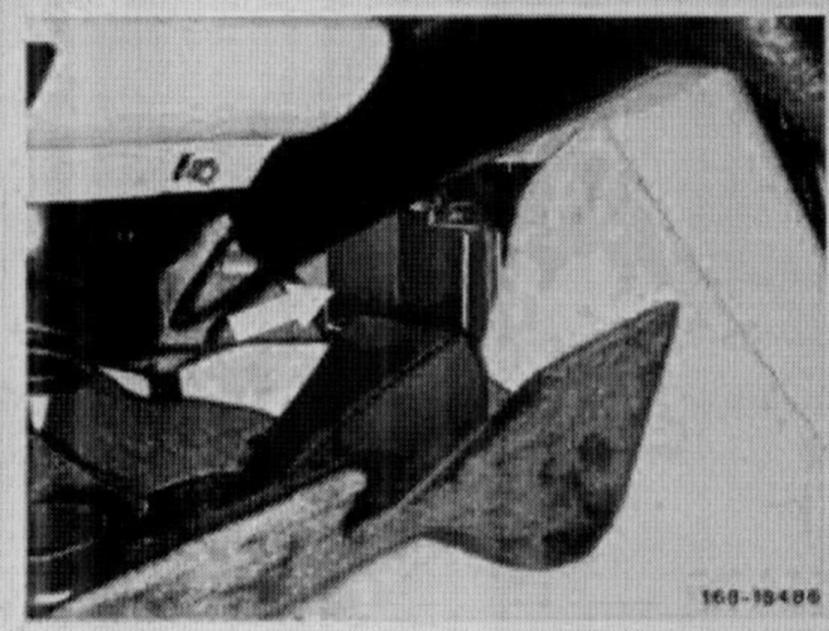

5. Plug the two parts of cover under panel together.




6. Slip-on cover at lower heater outlet opening.




7. Slip-on hose for nozzle on panel.




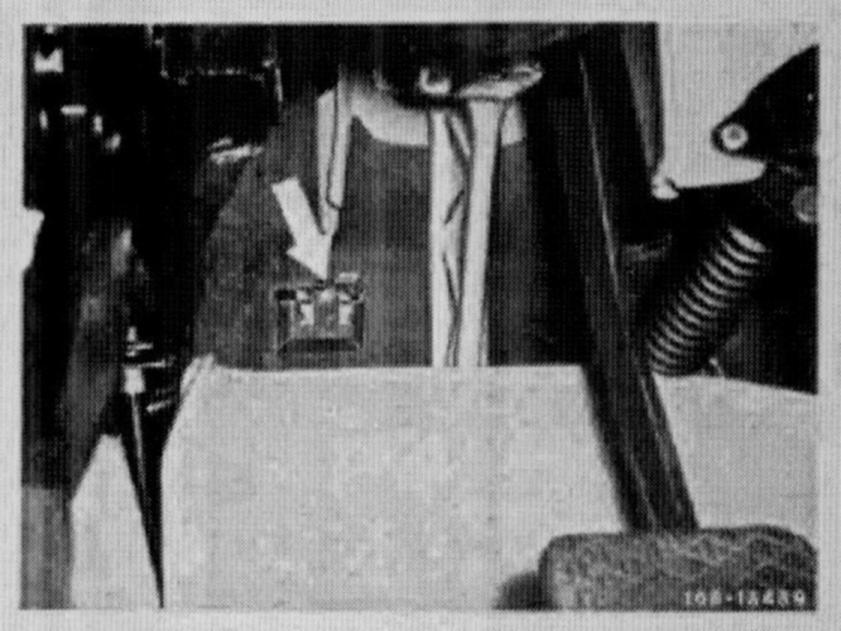

8. Attach cover to clip on front wall.




9. Attach cover to center console.
10. For further installation proceed vice versa.
