560 SEL, SEC

Air Cleaner Assembly:

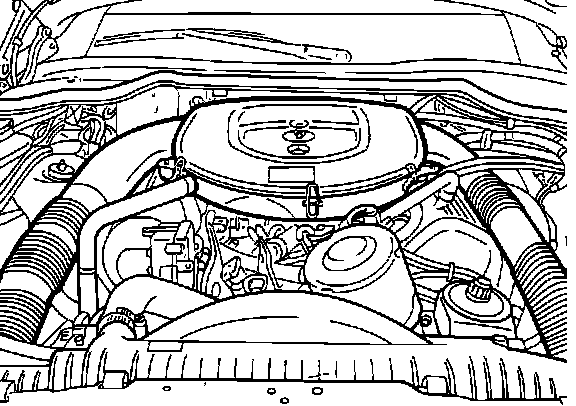

The air cleaner assembly removes dirt from the air intake system, and is located above the mixture control unit. It consists of a housing made of plastic and metal which is fitted with a replaceable paper filtering element.

Air Cleaner Assembly:

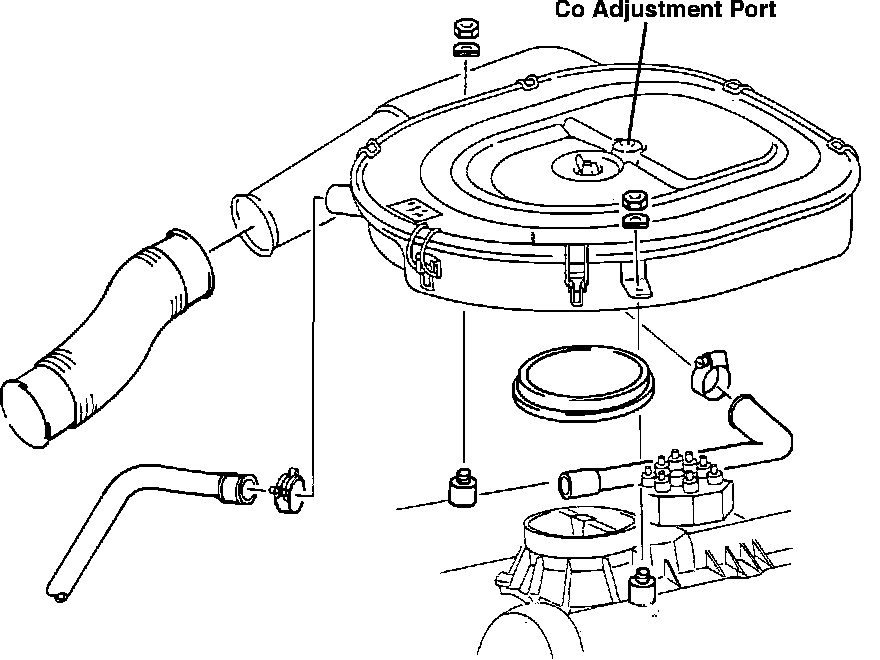

It is connected to fresh air via a flexable plastic tube and is fitted with an access port for air-fuel ratio adjustment.
