Uneven Idle Speed With Trans. In Gear
07.3-88011 Uneven Idle Speed with Transmission in Gear Vehicles with Engines 1/88116/117 Starting
Model Year 1988
Remedy:

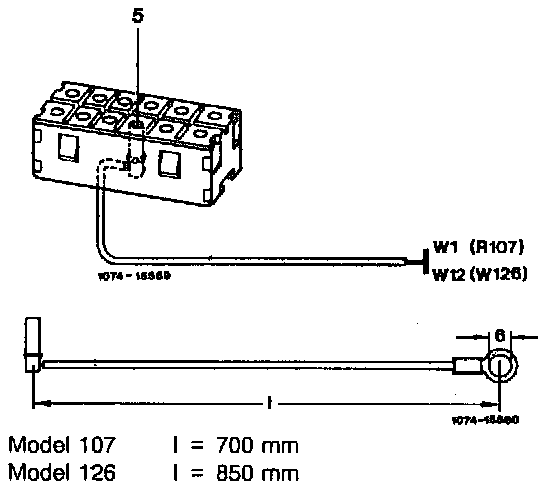

On model year 1888 vehicles, the idle speed (with transmission in gear) can be raised 50 rpm by connecting terminal "C" (terminal 5 on connector of idle speed control unit N8) to ground using shop-made harness (figures).
This procedure can also be performed on model year 1988/1987 vehicles.
For all 1986/1987 models except 126.035 (42OSEL), the idle speed control unit (N8) must first be replaced with the model year 1988 version, as the previous control units do not have the connection "C".
Shop-made Harness
Part Name Part Number
Wire 0.75 sq.mm --
Socket 4 mm dia. 003 545 26 26
Terminal cover 6 mm 900261-006000
